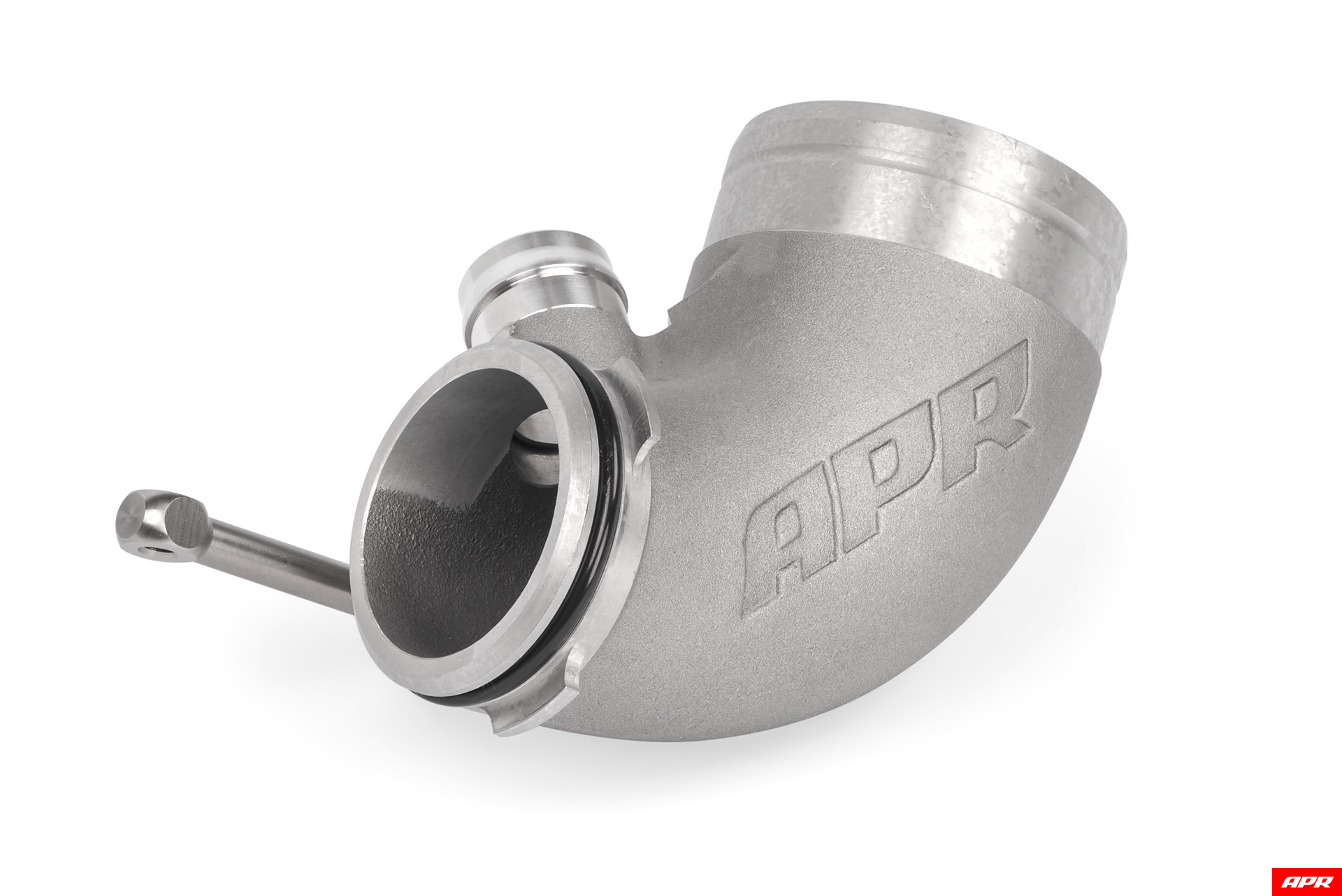

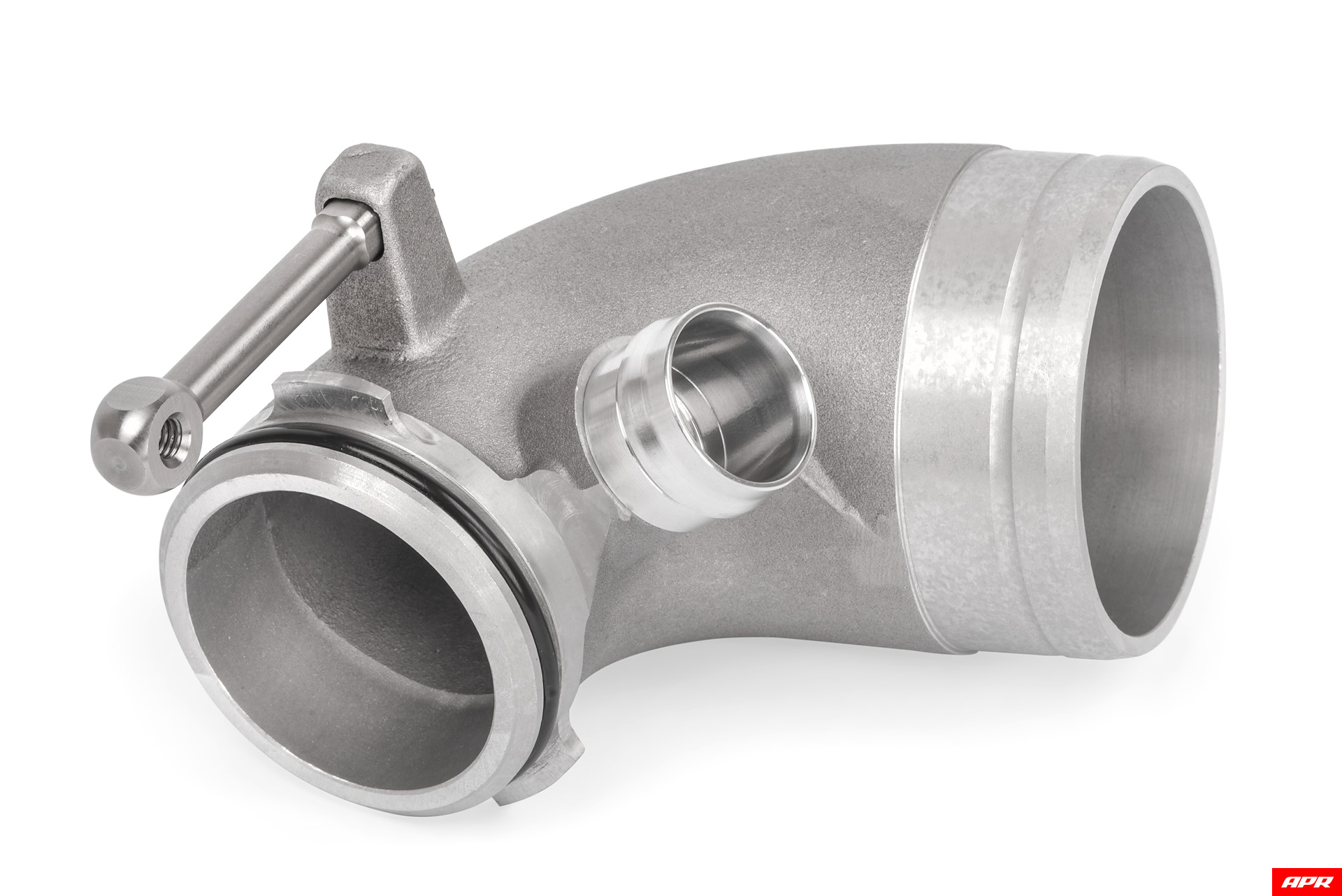

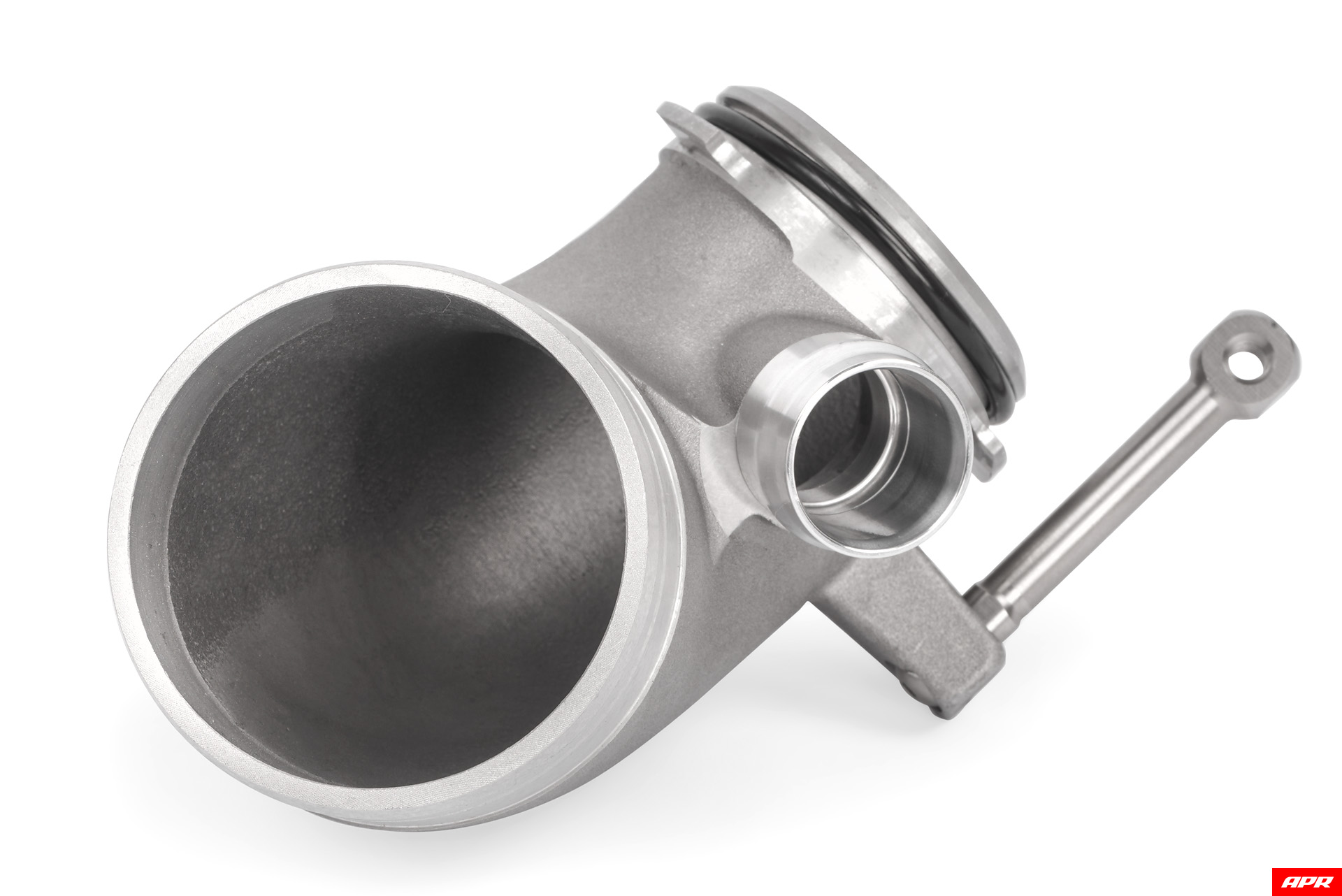

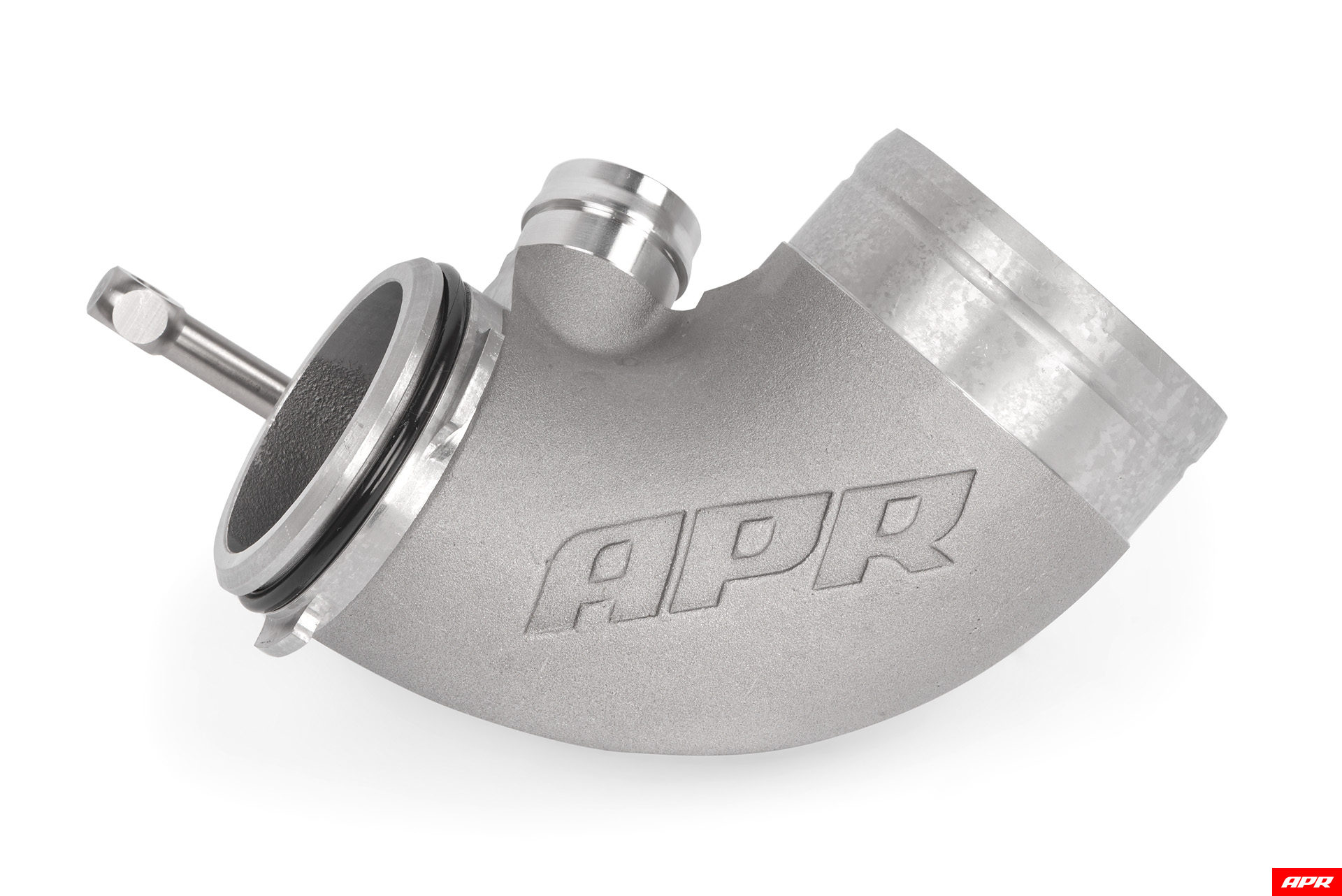

APR Turbo Inlet Pipe

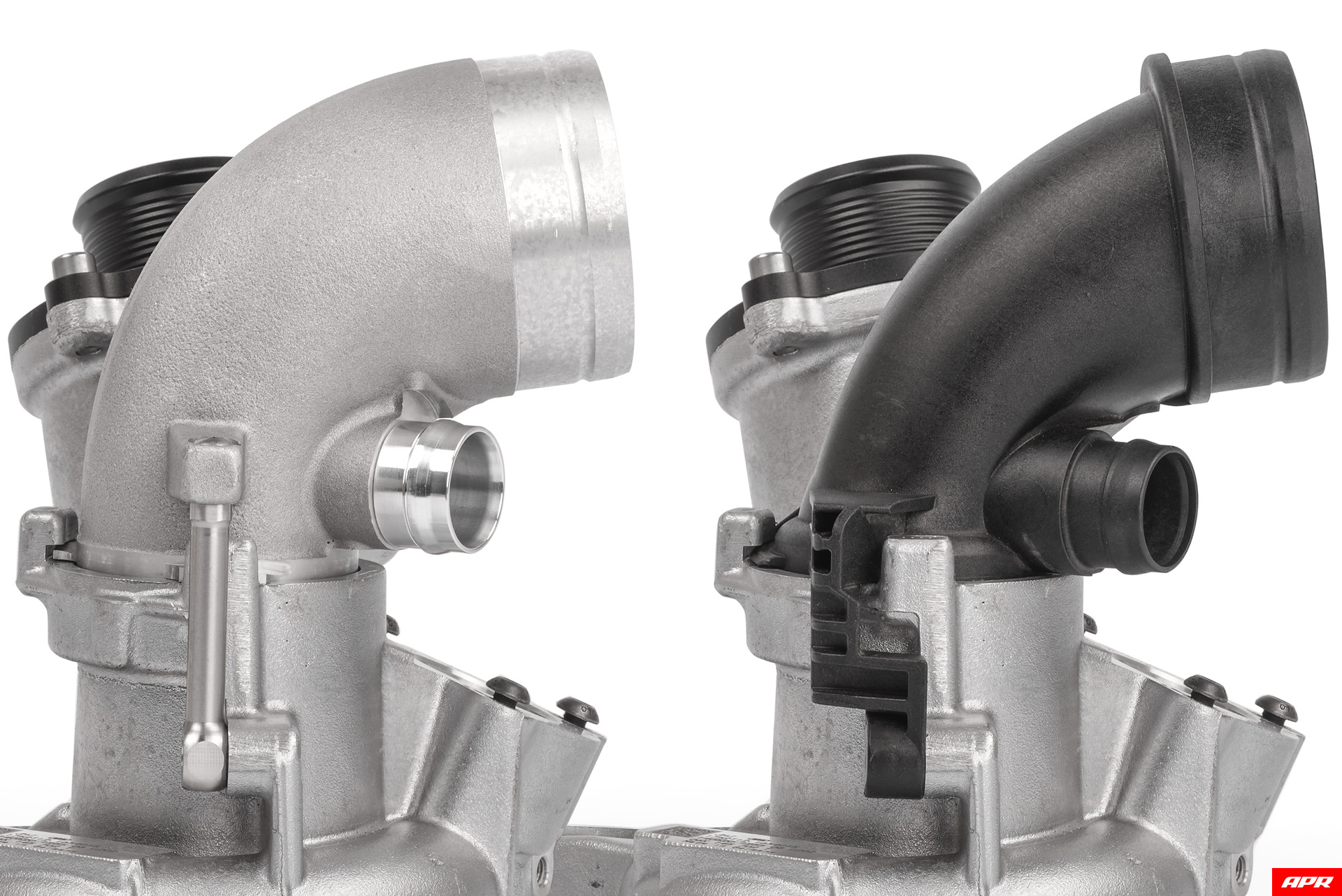

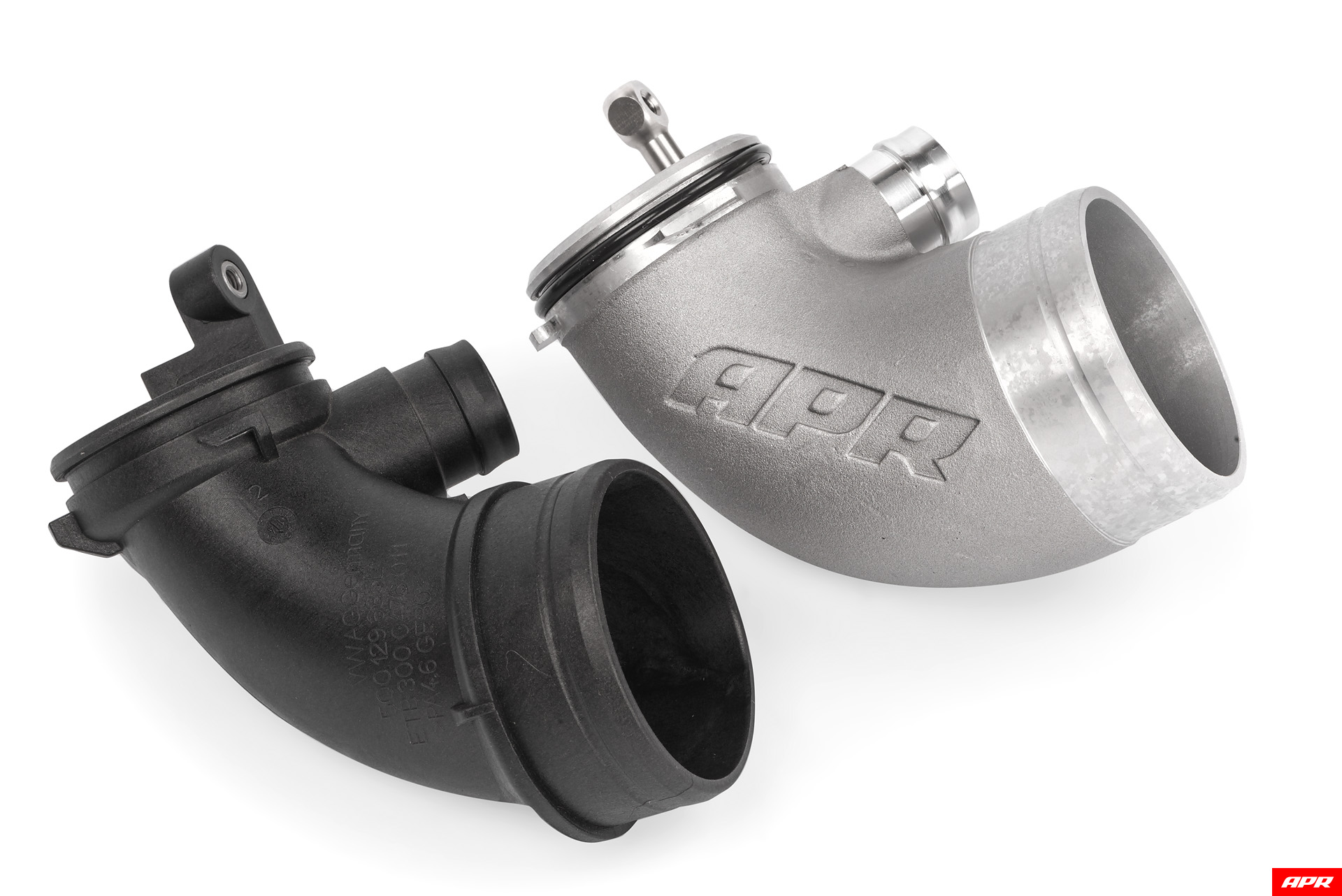

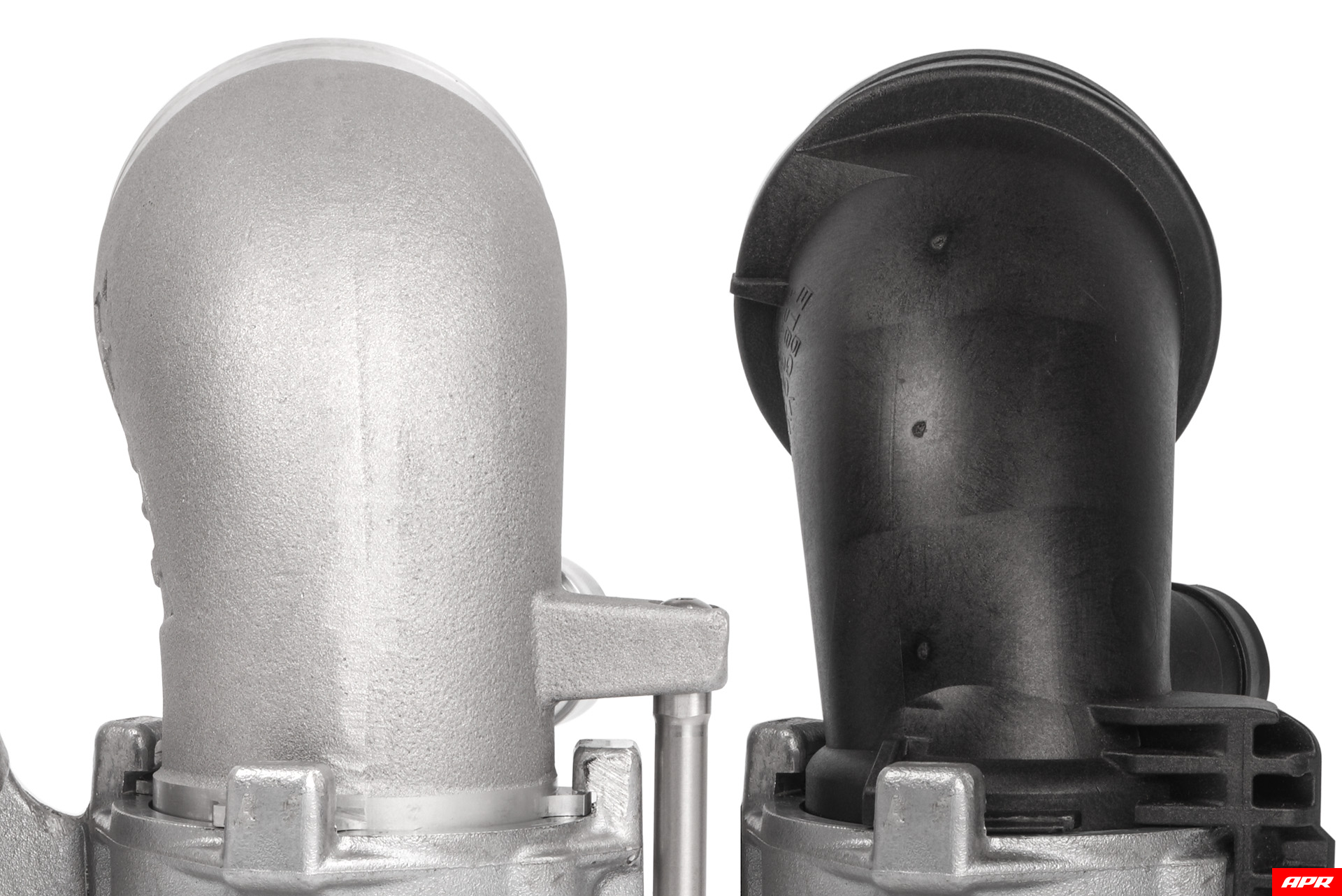

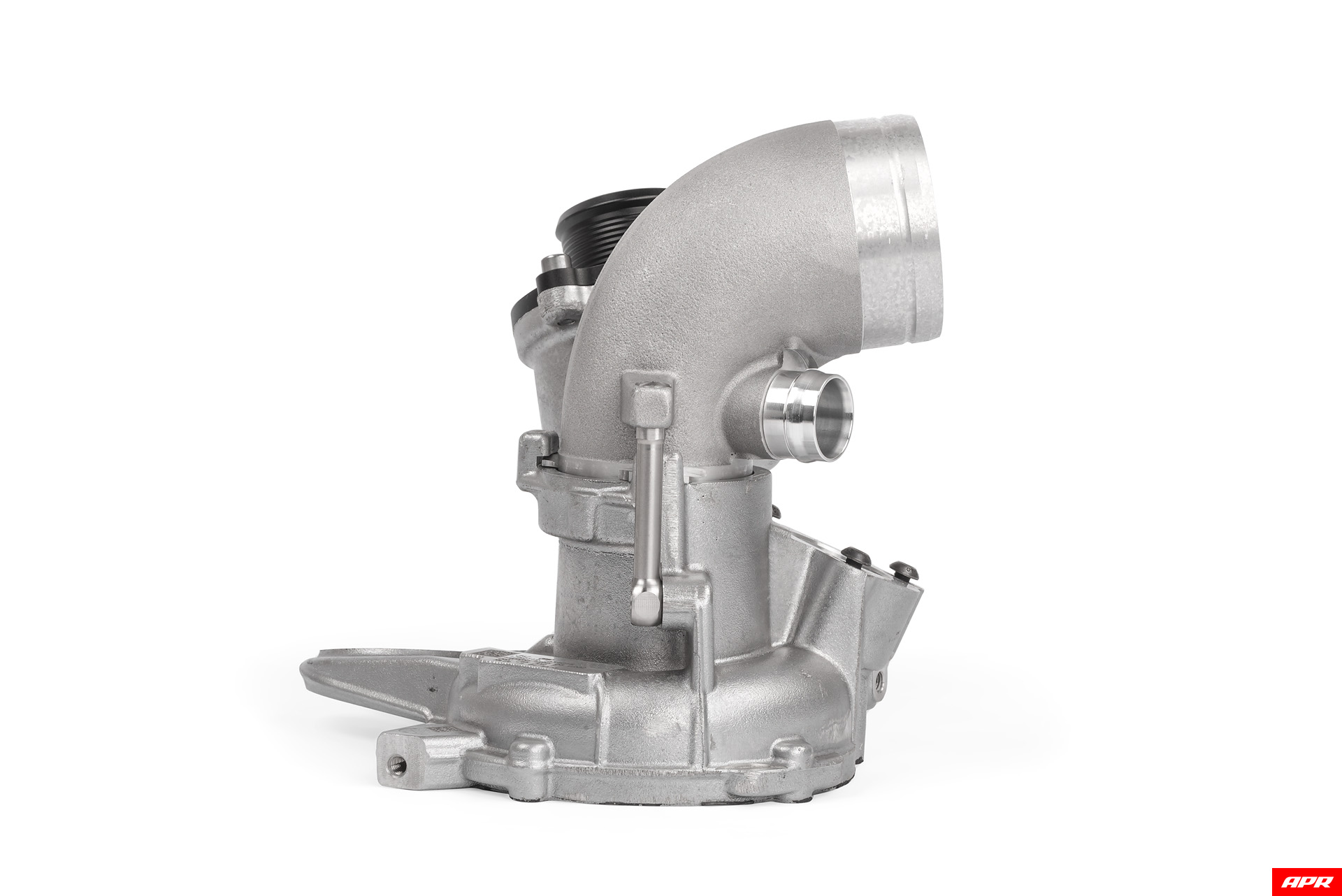

The APR Turbo Inlet Pipe is an easy-to-install bolt-on upgrade that eliminates a restriction before the turbocharger. Unlike fabricated units on the market today, ours is cast from aluminum, allowing for an organically shaped inlet that transitions gradually over a large distance. Such a design promotes better flow rather than abruptly reducing at the turbocharger’s inlet like other units. It’s larger than stock throughout, removes a large internal restriction at the PCV inlet, and outflows the factory unit allowing the turbocharger to operate more efficiently. We fully assemble each unit with a billet securing arm, billet PCV bung and new o-ring. The inlet and outlet are CNC-machined to control tolerances and ensure snug and secure connections. This upgrade is recommending at all stages utilizing an IHI IS12, IS20 or IS38 turbocharger!

Quick Facts

  • Cast aluminum construction

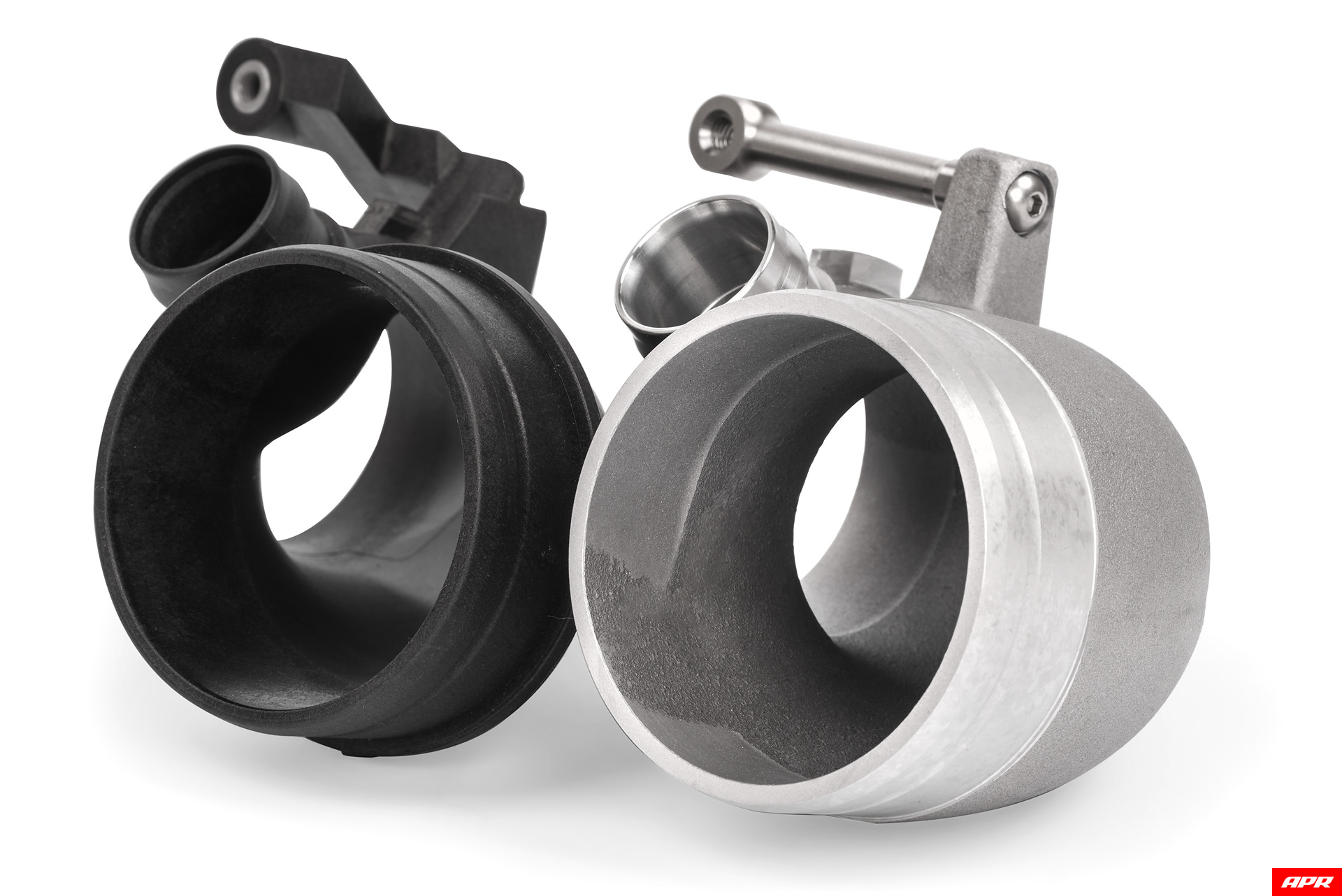

  • Outflows the factory unit: 441 cfm vs 379 cfm @ 28” of H2O
  • Larger internal diameter throughout
  • CNC-machined inlet and outlet

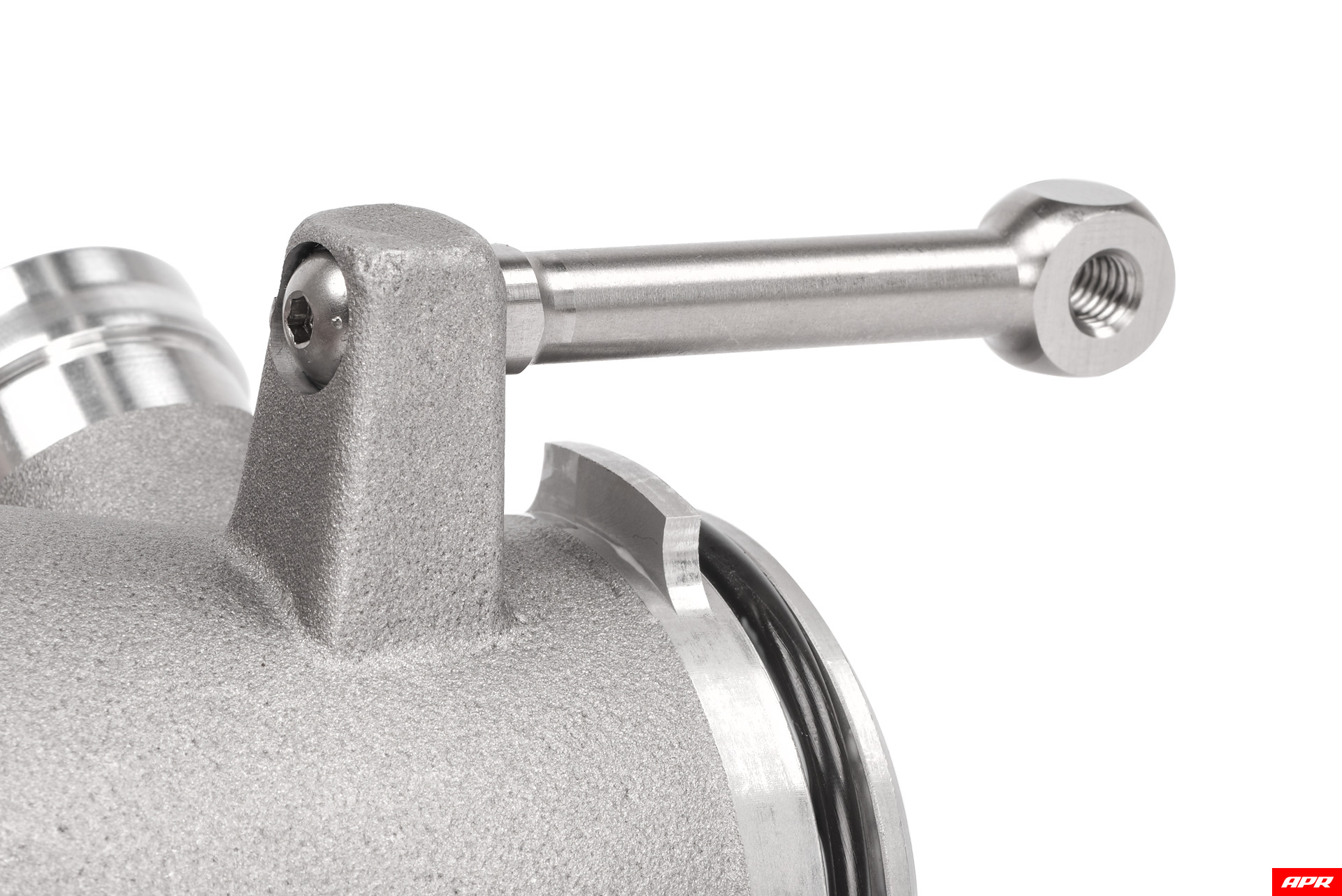

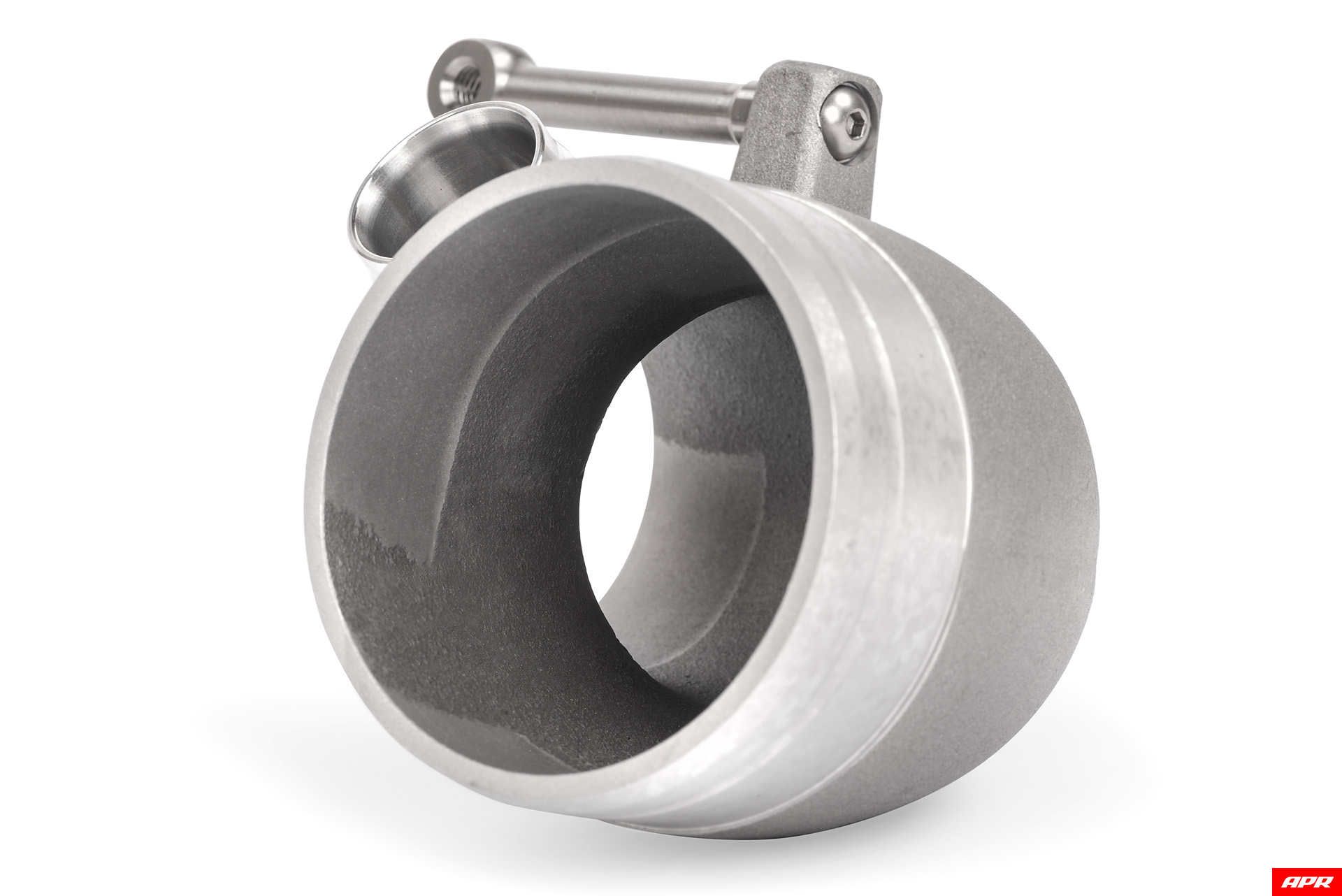

  • CNC-machined billet-stainless-steel securing arm

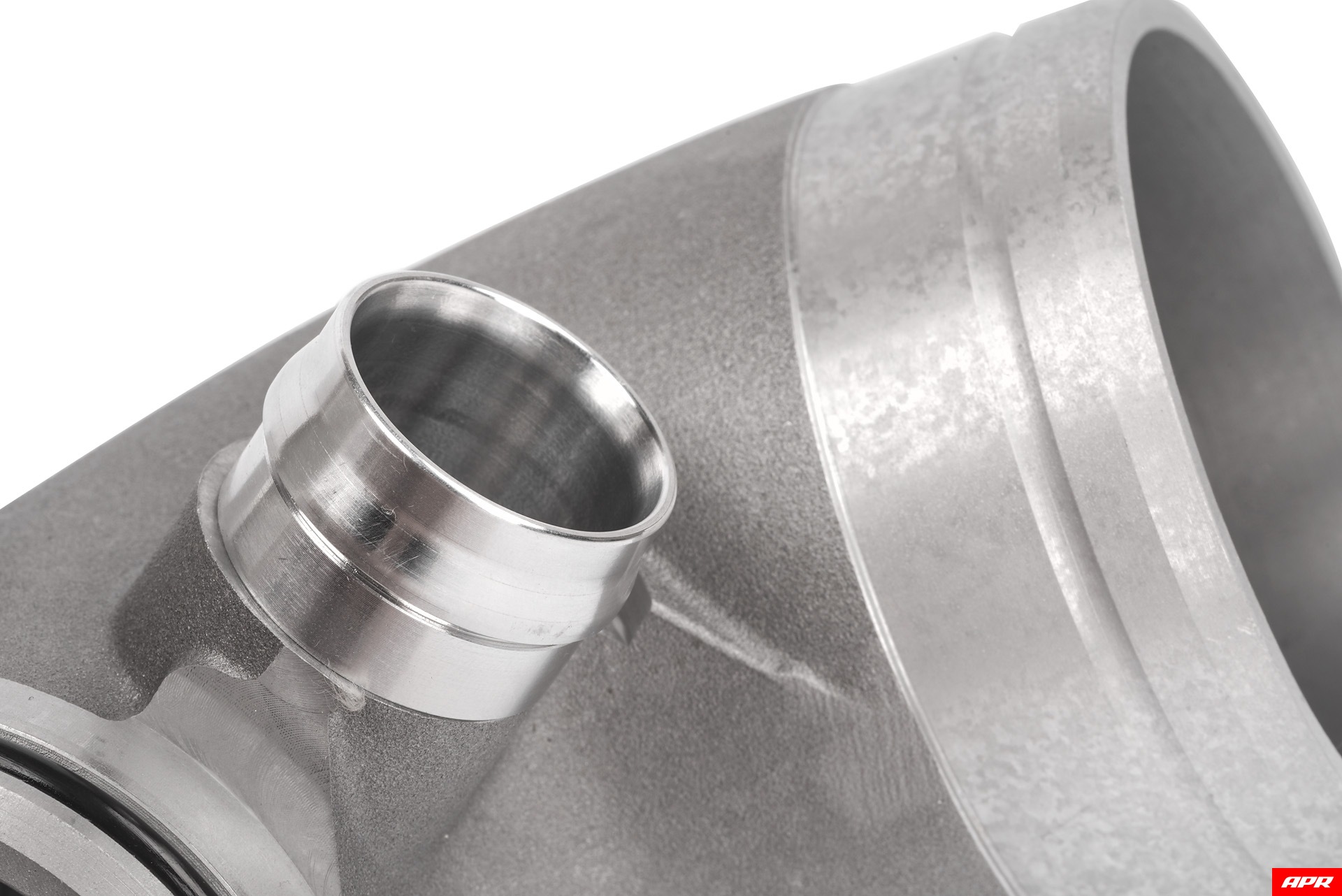

  • CNC-machined billet-aluminum PCV bung
  • New o-ring
  • Fully assembled and quality controlled in-house
  • Easy-to-install direct-bolt-on design
  • Limited lifetime warranty

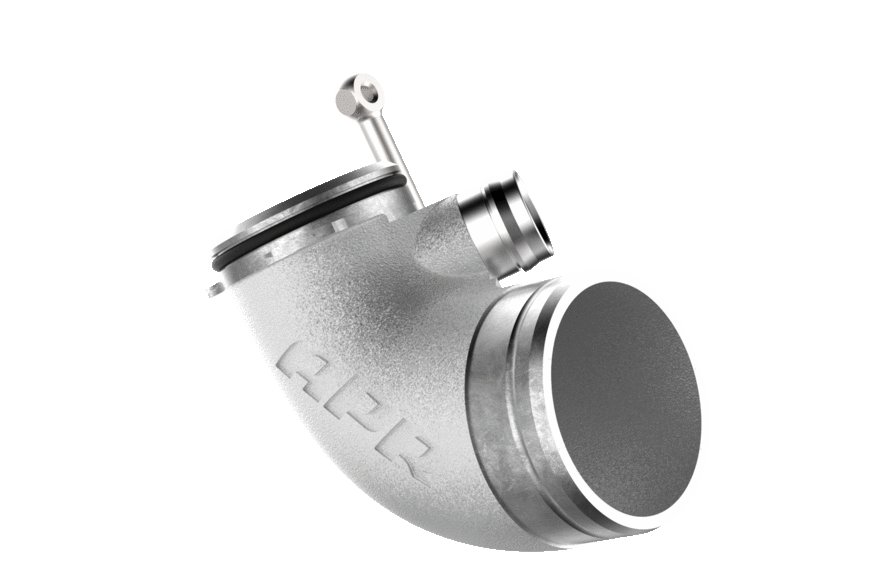

animation

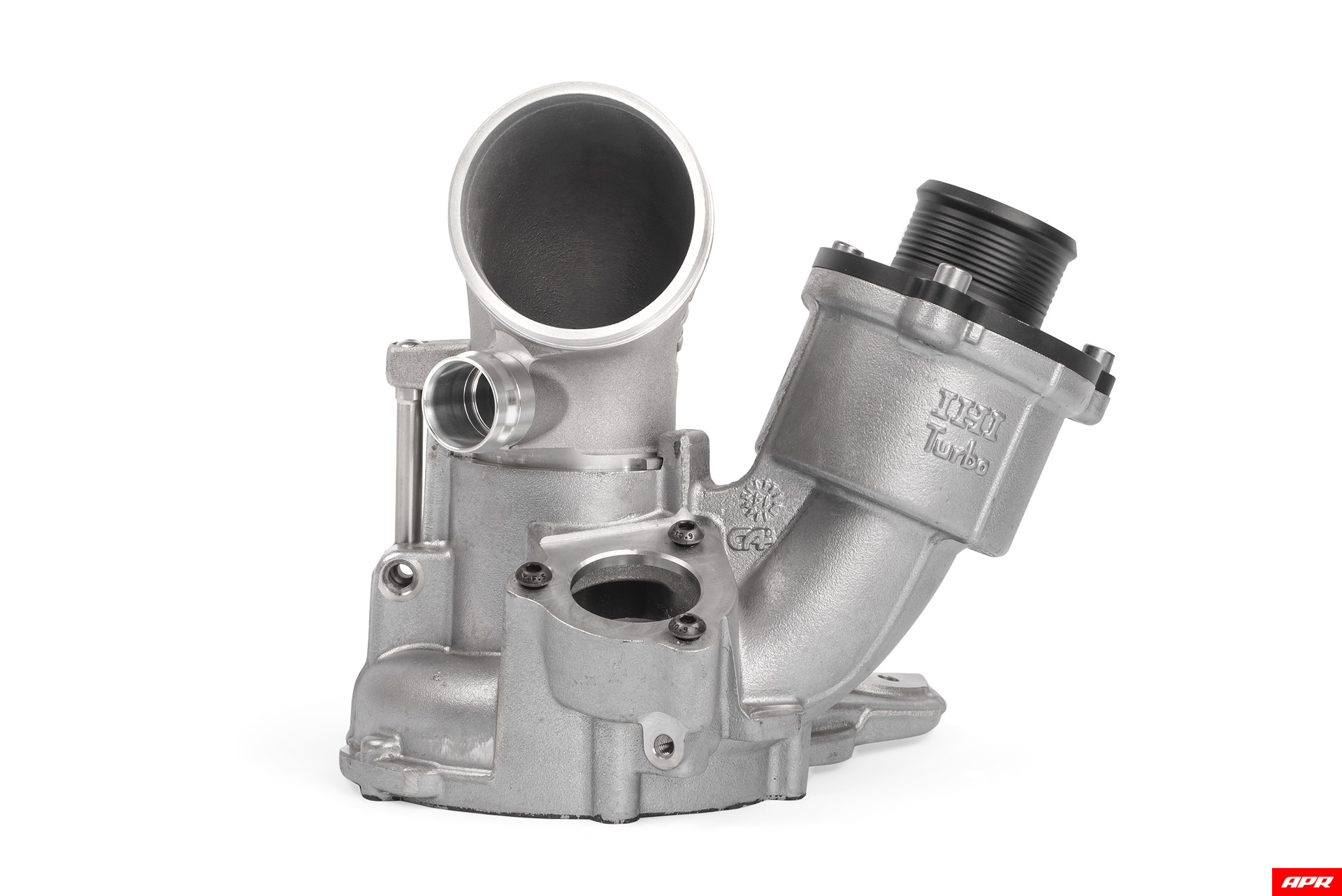

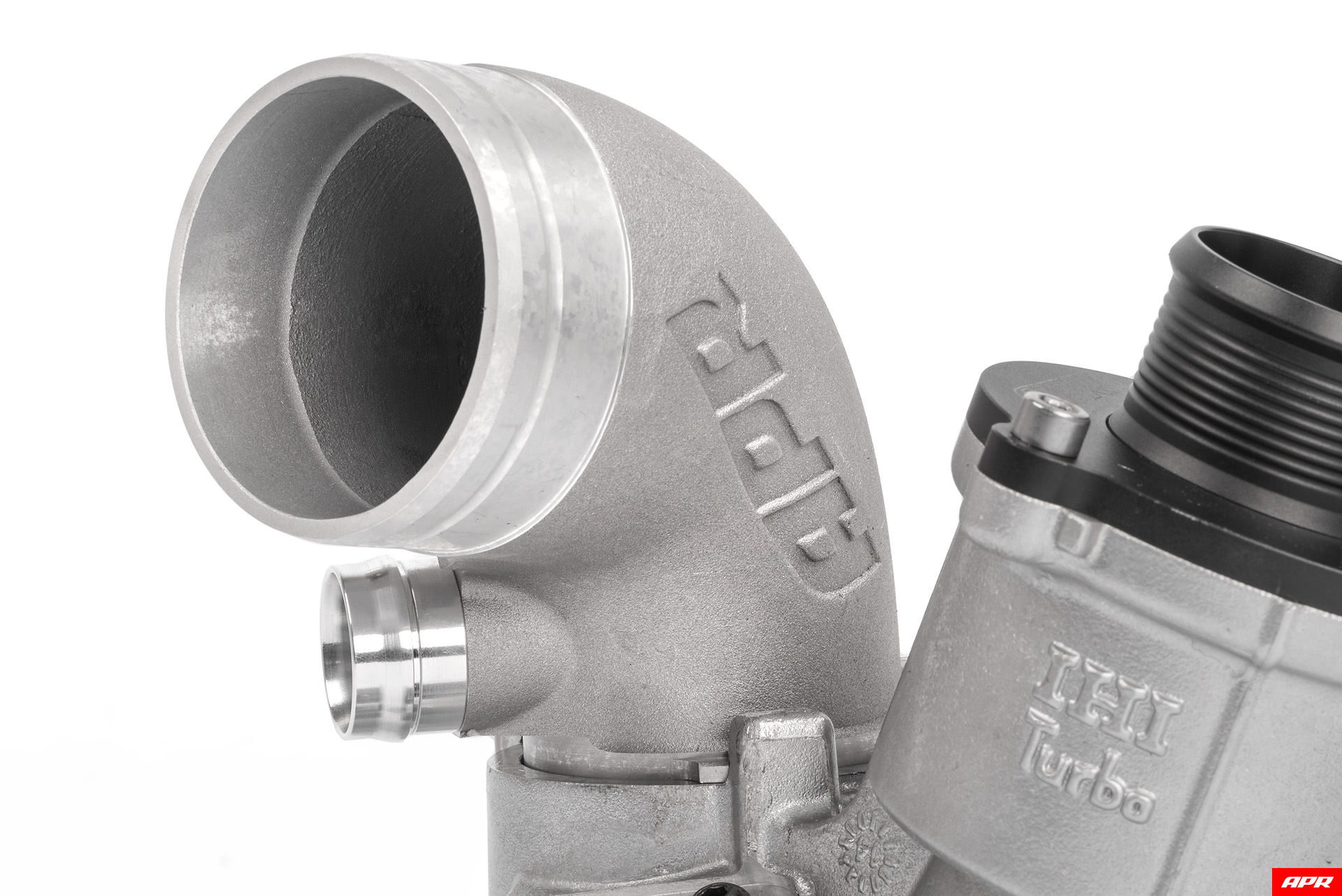

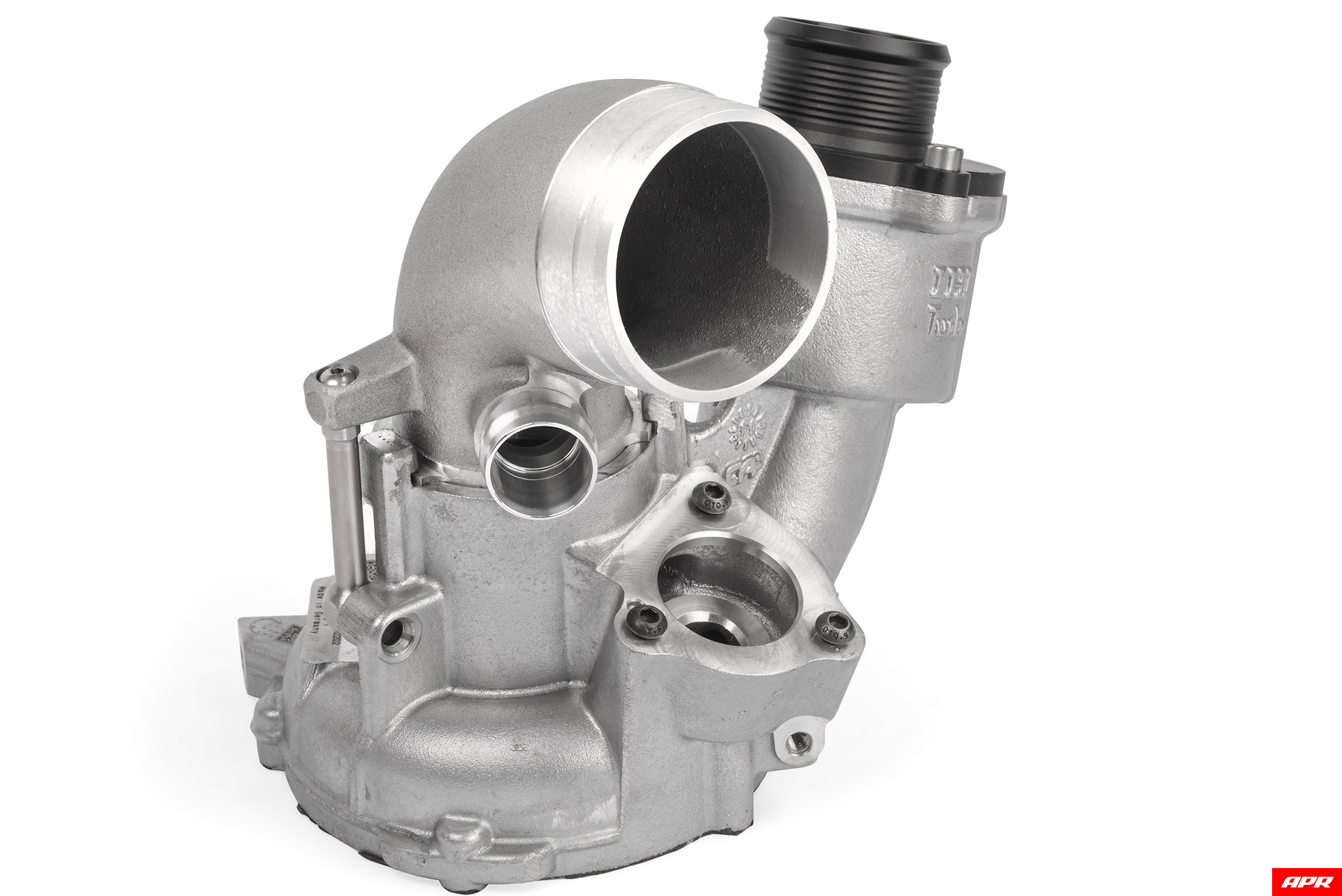

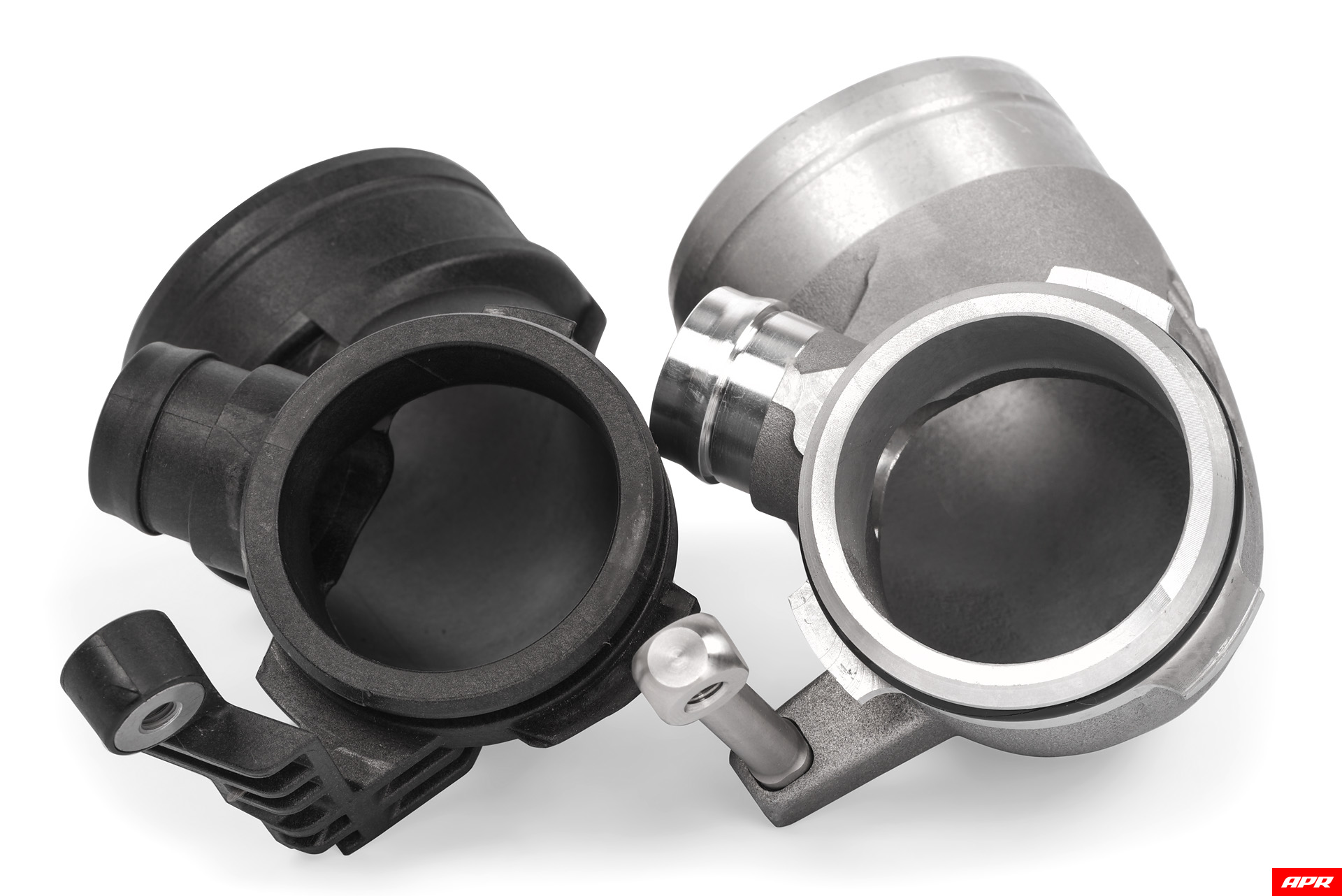

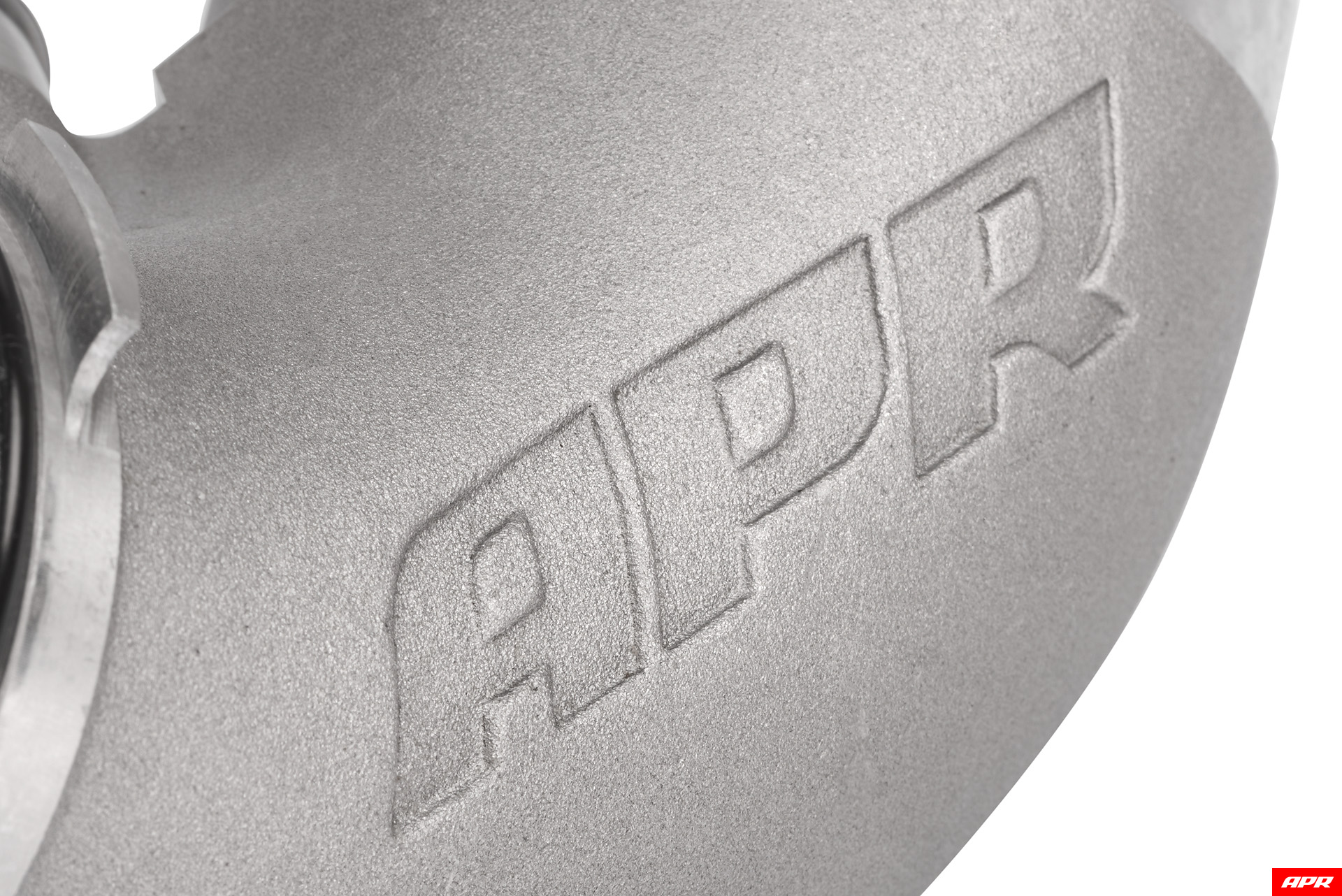

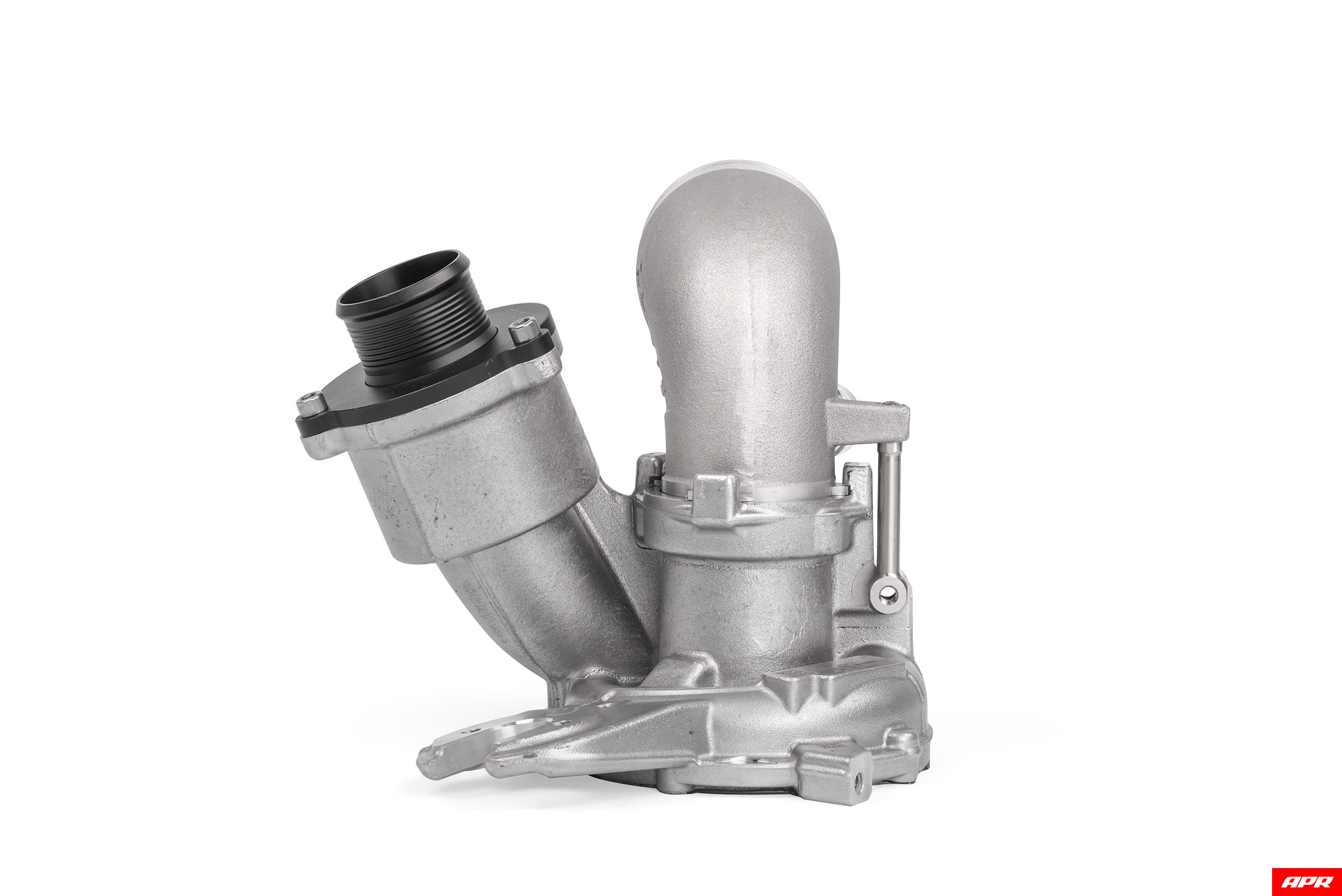

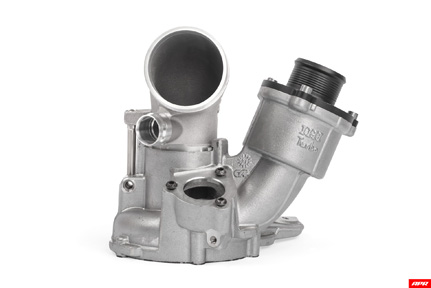

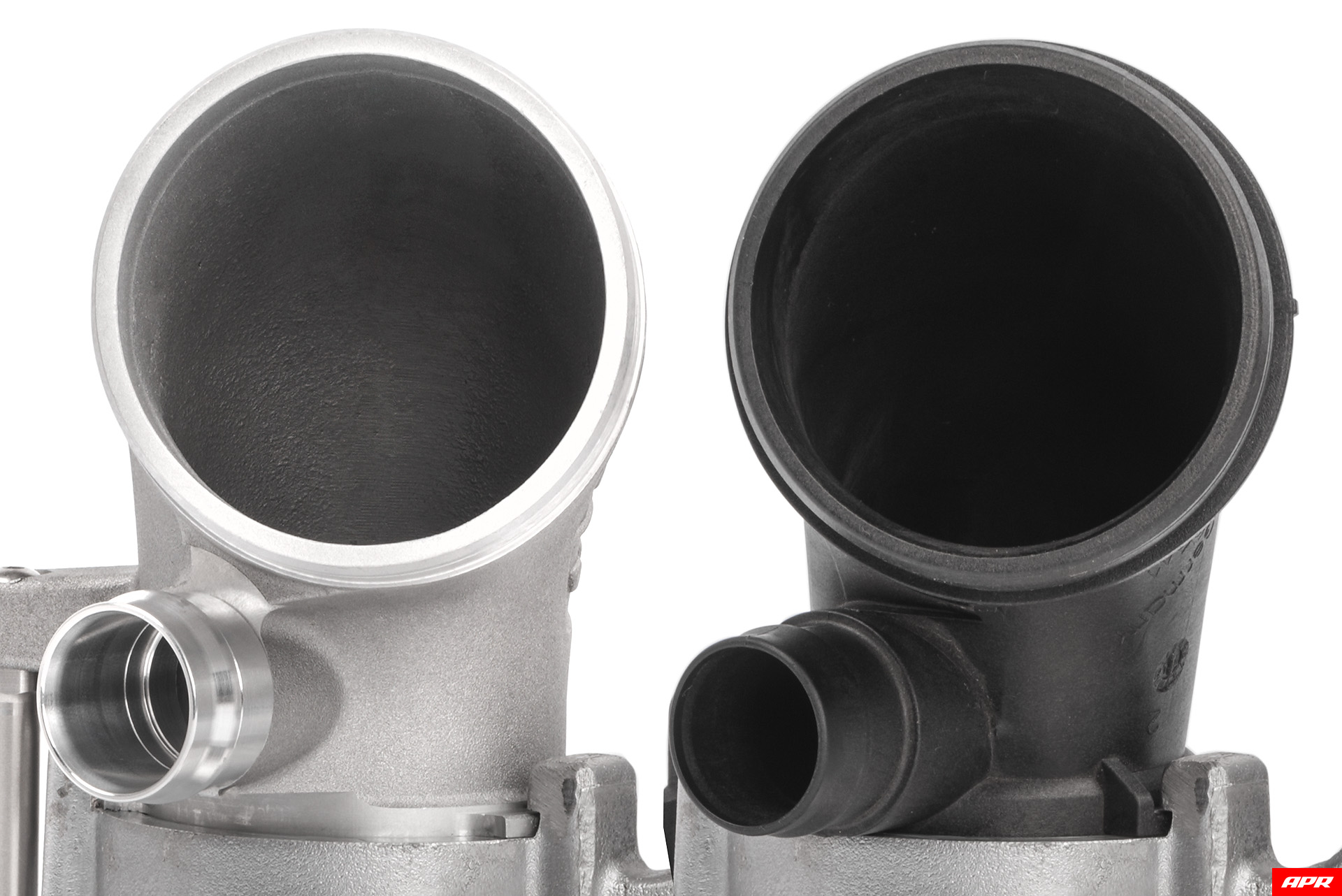

Photos

Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe Turbo Inlet Pipe
Application Guide
Make Model Generation Engine
Fits vehicles with parts 5Q0129635L, 5Q0129635P, 5Q0129654L or 5Q0129634P
Audi A3 / S3 MK3 (Typ 8V) 1.8T / 2.0T
Audi Q2 (Typ 5Q) 1.8T / 2.0T
Audi TT / TT S MK3 (Typ 8S) 1.8T / 2.0T
Seat Leon / Cupra MK3 (Typ 5F) 1.8T / 2.0T
Seat Alhambra (Typ 7N05) 1.8T / 2.0T
Seat Ateca (Typ 575) 1.8T / 2.0T
Skoda Kodiaq (Typ 565) 1.8T / 2.0T
Skoda Octavia / VRS MK3 (Typ 5E) 1.8T / 2.0T
Skoda Superb B8 (Typ 3V) 1.8T / 2.0T
Volkswagen Arteon (Typ 3G8) 1.8T / 2.0T
Volkswagen Golf / GTI / Clubsport / Golf R (Typ 5G) 1.8T / 2.0T
Volkswagen Passat B8 (Typ 3G) 1.8T / 2.0T
Volkswagen Sharan (Typ 7N05) 1.8T / 2.0T
Volkswagen Tiguan MK2 (Typ 5NA) 1.8T / 2.0T
Volkswagen Touran (Typ 1T06) 1.8T / 2.0T

Warning: Use of undefined constant MS100137 - assumed 'MS100137' (this will throw an Error in a future version of PHP) in /usr/www/users/apreu/europeansites/goapr.co.uk/products/turbo_inlet_pipe_20t_mqb.html on line 211
Product Guide
System Part Number Price Exc. VAT Price Inc. VAT
APR Turbo Inlet Pipe MS100137 £186.58 £223.90
