APR 1.4 TSI Twincharger Front Mount Intercooler System
APR is pleased to present the ultimate Front Mount Intercooler System for the 1.4 TSI Twincharger.
The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the 1.4 TSI Twincharger’s factory intercooler system. Through an increased frontal surface area, superior intercooler core design and smooth, cast end tanks, APR’s engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.
- Dramatically lowers intake air temperature
- Increases horsepower and torque while prolonging performance
- APR intercooler core dimensions: 21.00” x 4.50” x 6.40”
- OEM intercooler core dimensions 24.25” x 3.13” x 3.81”
- 48% larger core compared to stock with 69% more frontal surface area
- Pressure tested for leak proof operation
- Smooth cast alumnium end tanks
- CNC machined hose connection points
- Full install directions and APR's world-renowned customer support
- Lifetime warranty

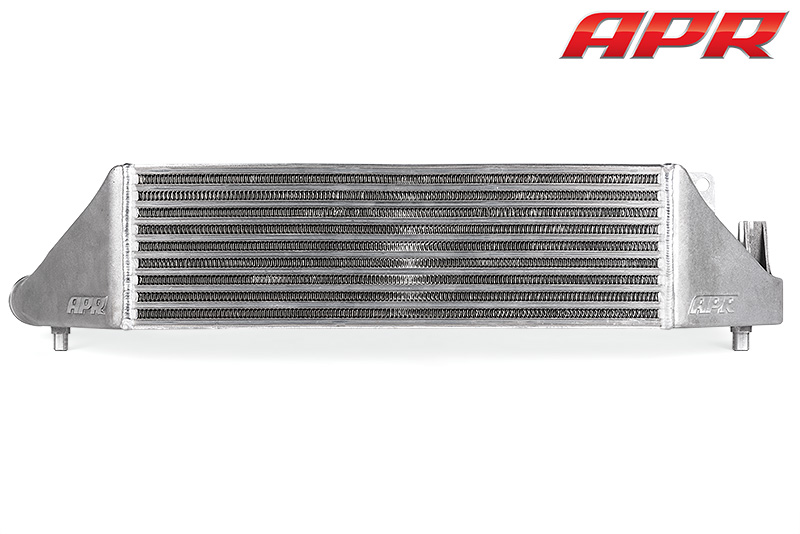

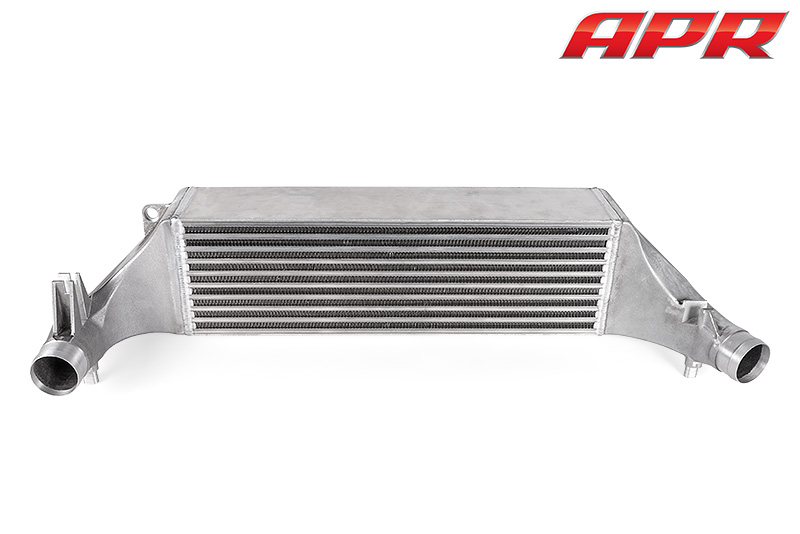

APR Intercooler System
Intercooler Ambient Air Fins
Each unit uses a high quality, bar and plate core with staggered and louvered fins. The Intercooler’s design and fin structure exposes the core to a greater volume of airflow than possible with the factory designs. With more of the intercooler directly exposed to the elements, cooling effectiveness increases.
Intercooler Charge Air Fins
Internally, the APR Intercooler System features a staggered and louvered fin design with a core density chosen as a balance between cooling effectiveness and pressure drop. The balance was easily adjusted to favor minimal pressure drop while still providing superior effectiveness compared the stock intercooler.
Photos
Testing Data - Dyno
The Test below demonstrates the intercoolers ability to cool intake air temperature even under brutal conditions. Six back-to-back pulls were performed with absolutely no cool down between runs. The APR Intercooler’s first run was conducted in identical conditions to the stock intercooler and it was able to keep the intake air temperature at redline lower than stock even after the sixth back to back pull! The dramatic rise in temperature from the stock intercooler cost the 1.4 TSI Twincharger valuable horsepower on the dyno.
| Make | Model | Engine | Transmission | Drivetrain | Part Number | Price Exc. VAT | Price Inc. VAT | |
|---|---|---|---|---|---|---|---|---|
| Skoda | Fabia VRS | 1.4 TSI Twincharger | All | All | IC100016 | £ SALE!: £0.00 | Please Call |
Please note, at thit time, fitment is only confirmed for the Fabia but may fit other small A05 chassis vehicles such as the A1, Polo and Ibiza.
