CARBON FIBRE INTAKE SYSTEM - B9 2.0T A4 AND A5

This is the ultimate intake upgrade for the Audi A4 and A5 (B9) with the 2.0T EA888 Gen 3 and Gen 4 engines. It flows 46% more than stock, reduces pressure drop, and improves turbocharger efficiency. This directly translates to more horsepower and torque making this a simple upgrade for more power you can feel.

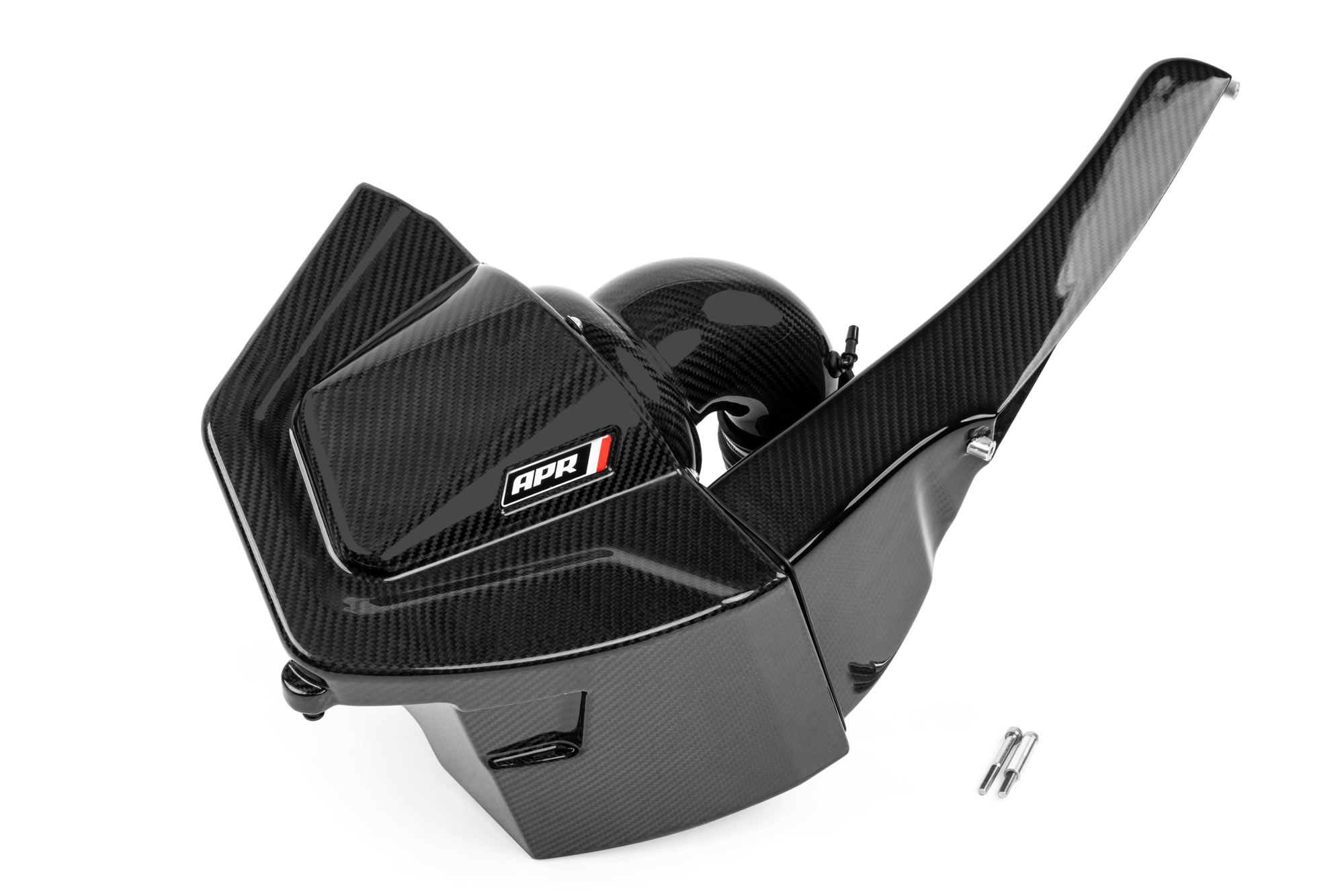

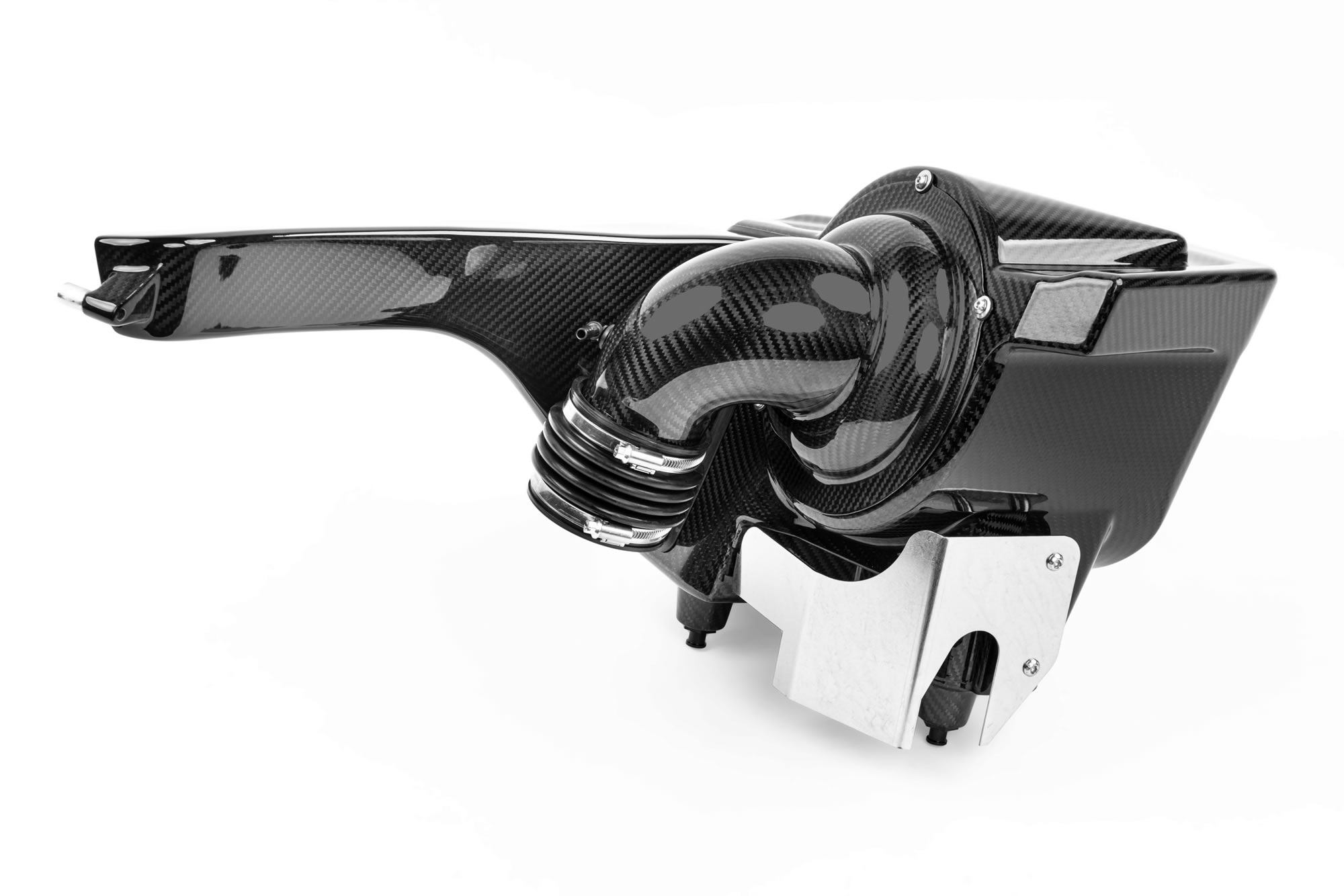

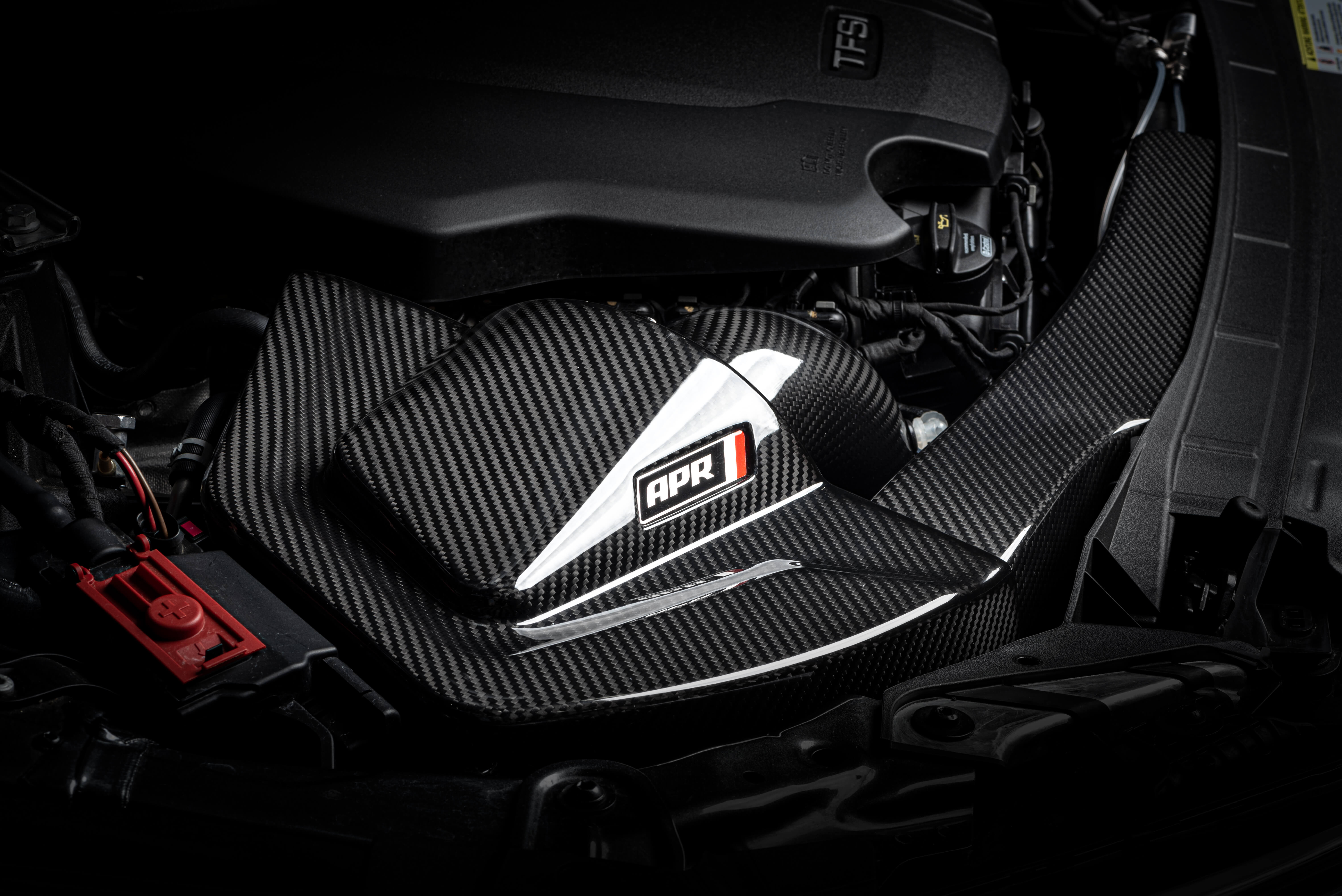

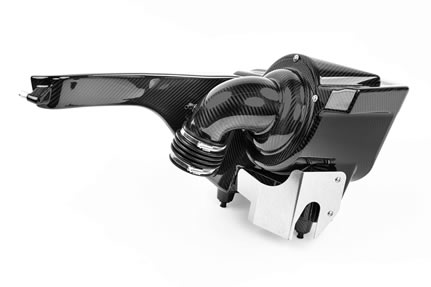

Our system is a full upgrade as it replaces all of the intake components from the inlet scoop all the way to the turbo inlet. Our system is made from carbon fiber and looks absolutely stunning under the hood. By using this material we are able to make the wall-thickness of the tubes smaller, maximizing the internal diameter, increasing performance even more! The material also allows us to make complex organic shapes necessary when working in a tight engine bay..

Features and benefits:

• Full intake system: Inlet, airbox, filter, and inlet piping
• Flows 46% more than stock
• Greatly outflows the full factory frontal airbox by 60% at 833 CFM vs 521 CFM
• Reduced pressure drop at the turbo inlet
• Enhanced engine sound
• Carbon fiber construction
• T304 stainless steel heatshield
• Turbo spool faster
• Turbo operates more efficiently
• Massive 7” x 7” filter with a 4” outlet and 5.5” frontal inlet

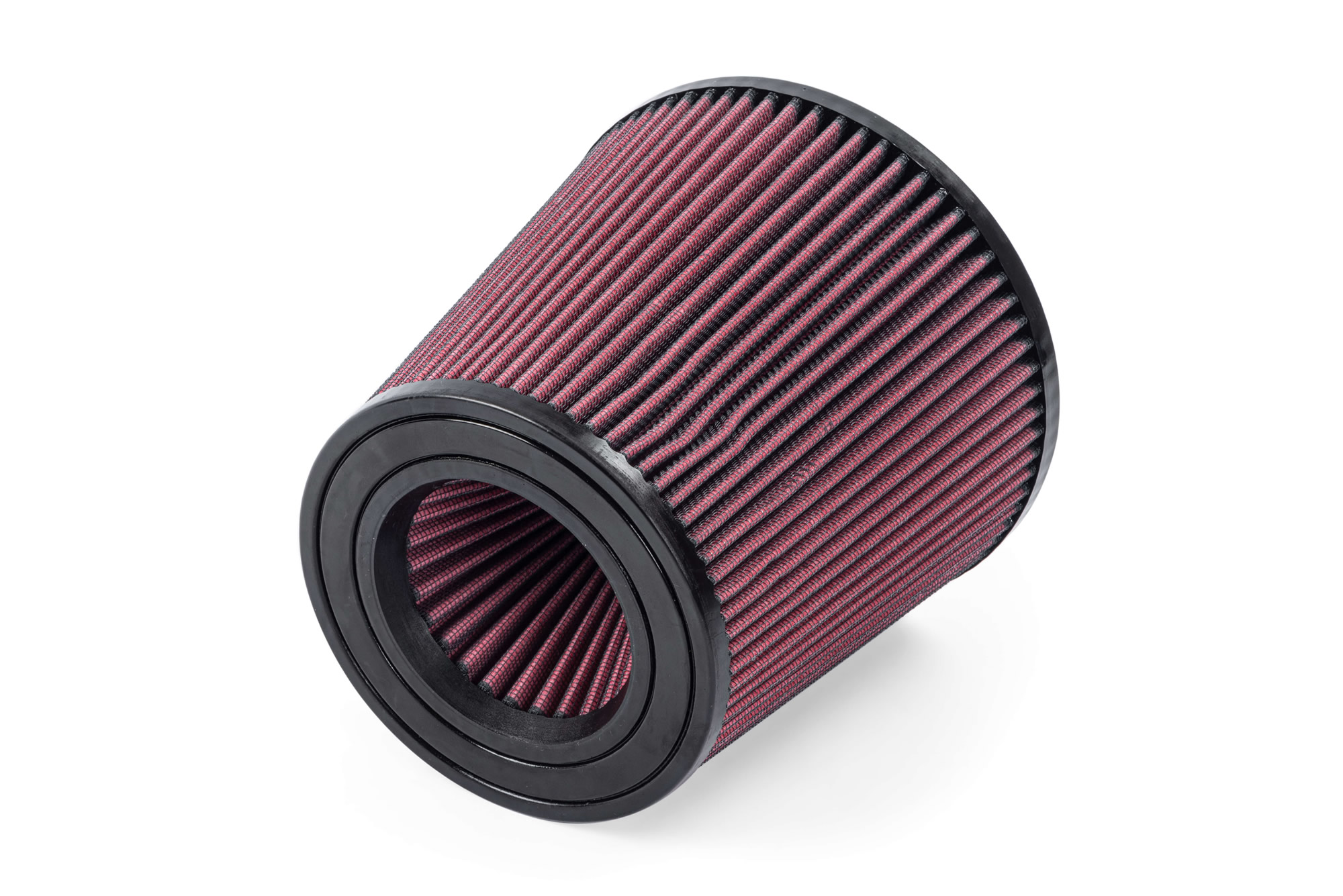

• High flow and washable pleated cotton gauze filter material
• Airbox has additional flow paths faced away from the engine
• Inlet piping diameter is maximized from the 4” filter all the way to the turbocharger
• Emissions friendly

Flow Bench and Power Testing

The factory intake simply can’t match the performance of ours. The factory system flows a maximum of 478 CFM at 28” in of H2O. We improve this by 46% as our full intake system flows 699 CFM! We’ve reduced pressure drop across the system and improved turbocharger efficiency. The turbo spools faster, and operates in a more efficient region of the compressor map. This directly translates to more power and torque you can feel.
