Acceleration Videos

APR Stage 1 vs Stock

Drag Strip Video

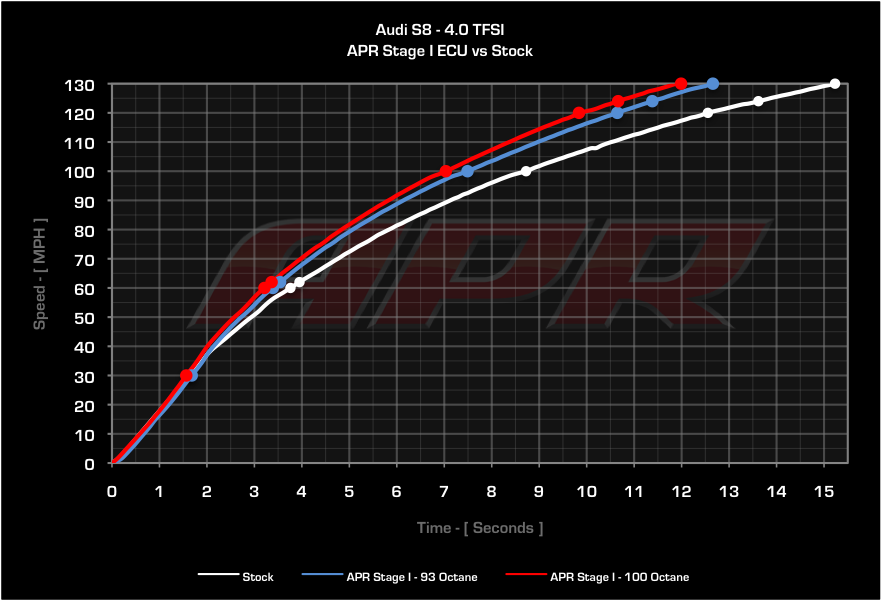

Acceleration Testing

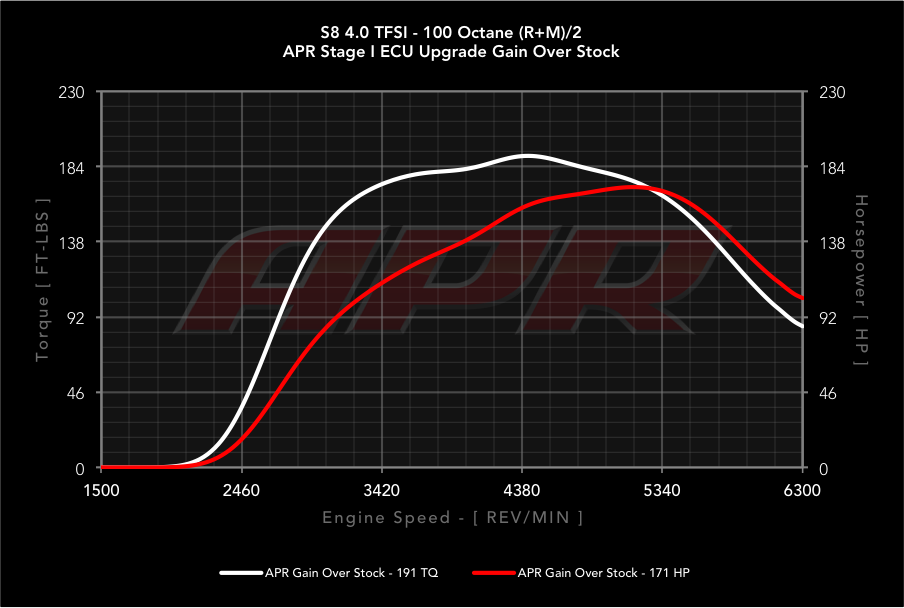

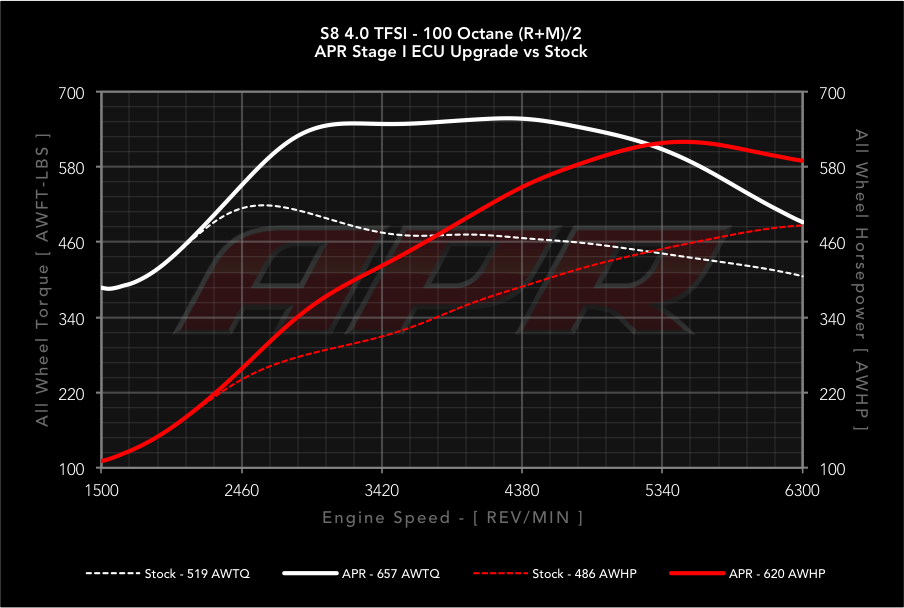

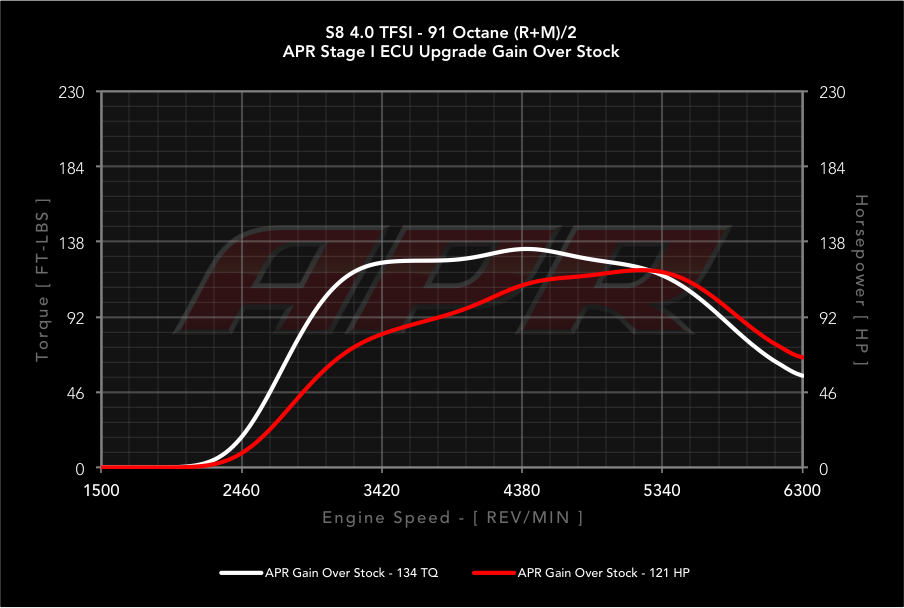

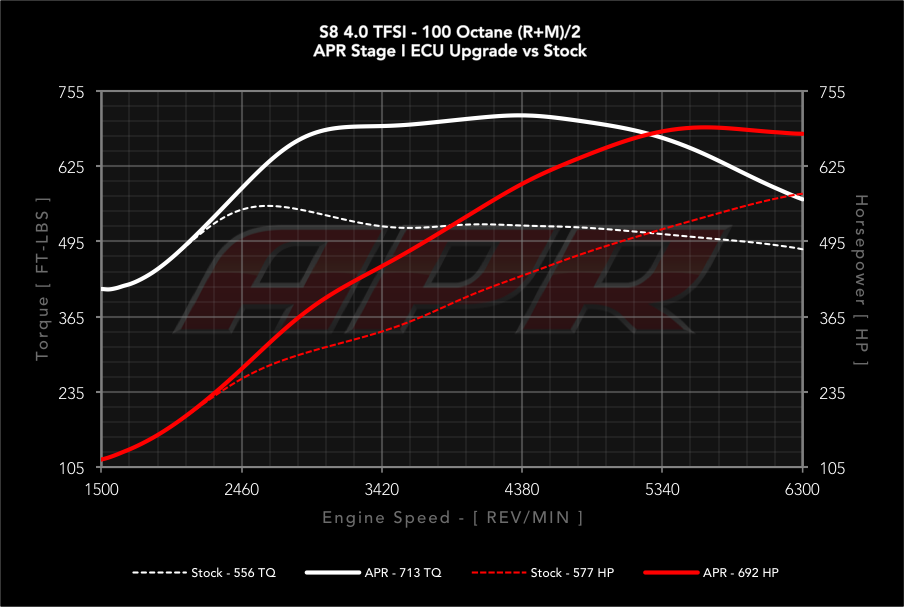

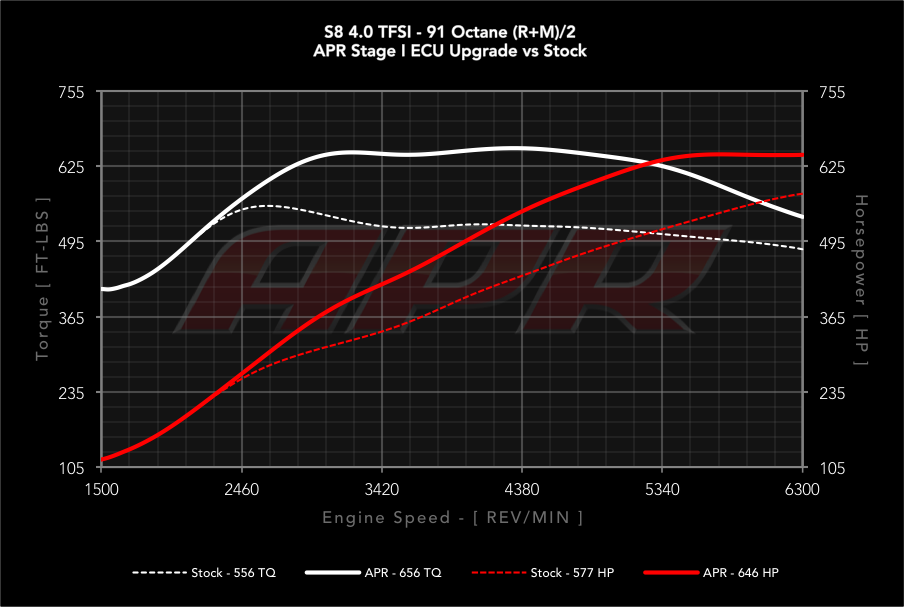

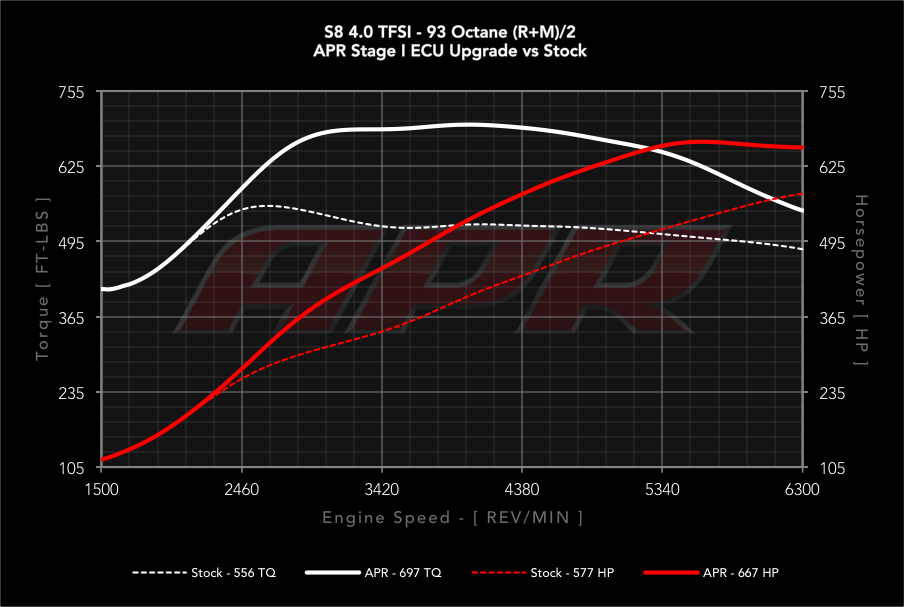

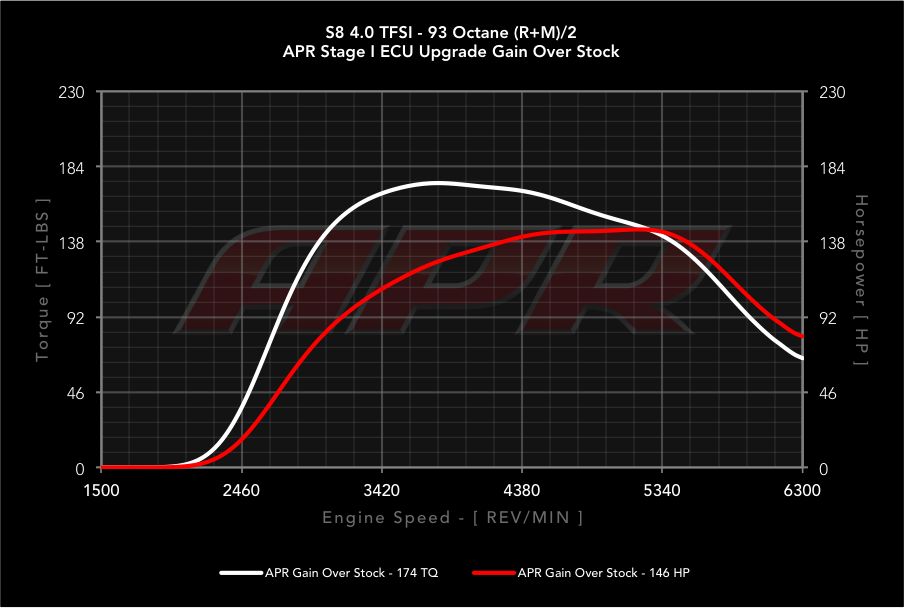

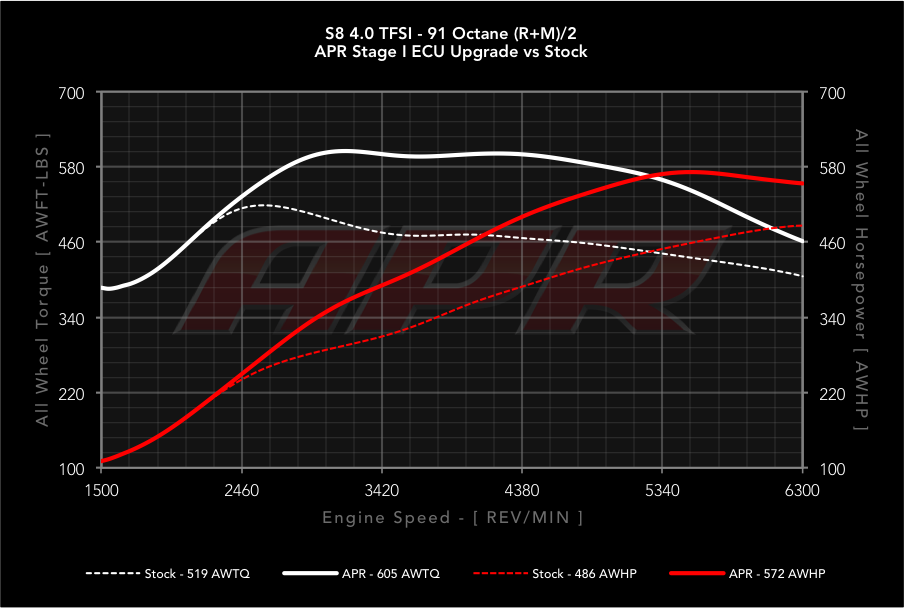

Dyno testing is a great way to gauge power increases over the entire rev range but may not translate to real world performance. Through GPS based acceleration testing, APR’s Engineers were able to verify increases made on the dyno translated to a faster and quicker vehicle on the street.

APR Acceleration Tests

Program Mode	0-60 MPH	0-62 MPH	0-100 KPH	0-100 MPH	60-120 MPH	62-124 MPH	100-200 KPH	60-130 MPH	30-130 MPH	1/4 60	1/4 ET	1/4 Trap
Data collected at the same location via a Racelogic P-Box with ESP/ASR off, Dynamic mode and Sport mode. May not be comparable to data collected in other locations.
Stock 95 RON	3.759	3.950	3.963	8.723	8.794	9.667	9.729	11.473	13.594	1.837	11.909	116.76
APR Stage I 98 RON	3.387	3.542	3.552	7.489	7.257	7.841	7.882	9.271	10.978	1.769	11.174	123.01
APR Stage I 104 RON	3.212	3.362	3.373	7.033	6.626	7.300	7.344	8.777	10.423	1.748	10.937	126.31
Stock vs APR 98 (Seconds Faster)	0.372	0.408	0.410	1.233	1.537	1.826	1.847	2.202	2.616	0.068	0.753	6.250
Stock vs APR 98 (Percent Faster)	9.89%	10.33%	10.36%	14.14%	17.48%	18.89%	18.99%	19.19%	19.24%	3.70%	6.17%	5.08%
Stock vs APR 104 (Seconds Faster)	0.548	0.587	1.690	0.590	2.168	2.367	2.385	3.171	2.696	0.089	0.972	9.550
Stock vs APR 104 (Percent Faster)	9.89%	10.33%	10.36%	14.14%	17.48%	18.89%	18.99%	19.19%	19.24%	4.84%	8.16%	7.56%

APR World Class Calibration Expertise

Tuning 101:

The 4.0T engine uses a Bosch MED 17 ECU for engine management. Basically, it’s a computer that tells the engine how to operate. Tuning software, like the APR ECU Upgrade, tells the engine how to make more power. It does this by running more boost pressure, optimizing the cam shaft positions, adjusting the air/fuel ratio, advancing ignition timing, and more.

A Better Engine Management System:

The 4.0T’s ECU is incredible. Without the driver knowing otherwise, the ECU makes intelligent adjustments to the engine’s operations to keep it running smoothly. Unlike ECUs found in many other makes and models, when properly tuned, the ECU eliminates the need for custom tuning to maximize output, even when weather conditions change dramatically.

How APR Differs from the Competition:

The ECU is powerful, but extremely difficult to master. Without mastery, the ECU must be simplified, removing what makes it so desirable. The result is an incomplete product that often requires end user adjustment to maximize output in limited scenarios. On the contrary, APR’s Engineers spent the better part of a decade mastering the ECU to unlock its full potential. With complete access to the thousands of maps, tables and variables within, as well as a high-level understanding of how it works, APR’s Engineers were able to take advantage of everything the ECU has to offer. Power is maximized in nearly all scenarios, eliminating the need for end user adjustments. High performance operational modes are enabled and calibrated to deliver smooth daily driving, with a snappy and responsive throttle during moments of spirited driving. Mastery of the boost control system makes for an impressively predictable driving experience as the turbo spools quickly, delivering instant power, while torque-by-gear helps protects the engine from being lugged out in tall gears. Lastly advanced high-output protection routines are enabled, allowing the ECU to make constant adjustments to airflow and fuel to cool and protect the engine, all without the driver knowing otherwise.

Acceleration Enhancements:
Beyond horsepower and torque enhancements, APR’s Calibration Engineers were able to increase the acceleration rate of the vehicle through other calibrations changes. Ignition delay is reduced resulting in a more responsive pedal without altering overall throttle sensitivity. Furthermore, throttle lag commonly noticed at slow speeds and while reapplying throttle has been reduced.

Speed Limiter:
APR’s ECU upgrade increases the vehicle's top speed limiter for blistering sprints around the track or across the Autobahn without the speed limiter shutting down the fun.

Left Foot Braking:
APR's Left Foot Braking feature allows more control over the vehicle’s throttle. The factory equipped vehicle's throttle input is disabled while pressing the accelerator and brake at the same time. Left Foot Braking, a common motorsport driving technique, allows the driver complete control over the vehicle’s throttle and braking system, which may give the vehicle the edge it needs at the track.

Increased Fuel Economy:
APR’s Calibration Engineers paid close attention to several parameters directly related to fuel economy, especially while cruising at highway speeds. Depending on driving style and fuel quality, better miles per gallon may be achieved.

APR EMCS Programs and Features

APR’s Enhanced Modular Chipping System, (EMCS), brings selectable programs and features to the factory ECU, without the need to purchase external hardware switching devices. EMCS has the ability to completely rewrite the entire operating map data within the ECU, giving each program mode a completely different set of calibration changes. On this platform, this is contrary to the industry norm of capping limits, using multipliers, only swapping portions of a base calibration, or relying on knock activity to lower output. APR’s EMCS features and programs modes are activated via the factory OEM cruise control buttons, and optionally through APR Mobile. The vehicle’s cruise control will function normally while driving.

To learn how to activate the programs and features, choose the vehicle's cruise control type from APR EMCS Owner's Manual.

APR Mobile

APR ECU Explorer

APR’s proprietary ECU Explorer gives APR’s Calibration Engineers unparalleled access to the vehicle’s entire engine management system. Typical commercially available data logging tools, used by most tuners, only allow logging up to 12 engine-operating variables at extremely low data rates. These tools are also limited to a small, specific list of variables. APR’s ECU Explorer is capable of logging every variable found within the ECU with far more variables logged at once, at very high data rates.

APR ECU Composer

APR’s proprietary ECU Composer is used for altering the engine management system. With full access to every table, map and variable within the ECU, APR’s Calibration Engineers are not limited to a handful of maps as is common for most tuning companies.

APR ECU Assembly

APR’s Electrical Engineers have the ability to alter the code structure of the ECU. Through code levels changes, APR's Engineers are able to add features to the ECU. Other changes allow higher torque limits than those achievable through only modifying calibration data or using piggyback devices as is the case for many tuners. This allows APR's engineers to often not require transmission software to meet or exceed advertised gains. On the highly modified end, this often allows APR to make turbo upgrades operate without the need for external manual controllers.

APR Direct Port Programming

APR’s DirectPort Programming is now available! Any APR Dealer in the world, connected to the Internet, has direct access to APR’s latest ECU upgrades for loading directly over the vehicle's OBD-II port. This completely eliminates the need to remove and open the ECU for currently available files and can be uninstalled at any time!
