APR 2.5 TFSI EA855 EVO ECU Upgrade
APR is pleased to present the ultimate engine control unit (ECU) upgrade for the 2.5T EA855 EVO (Gen 2) engine!
APR’s ECU Upgrades are the best pound-per-horsepower modification one can make to the 2.5T engine. The upgrades dramatically increase horsepower and torque, making for an exceptionally quicker and more exciting vehicle. This is made possible through APR’s optimization of the factory engine management system to take full advantage of the engine’s capabilities, without needing any end user adjustment. The software loads to the factory ECU through the OBD-II port, resulting in a clean and headache-free install. Optional features, such as APR's EMCS Program Switching and APR Mobile are available. Furthermore, for those looking for tuning with a limited powertrain warranty, APR Plus has you covered!
APR ECU Upgrade Stages
APR’s ECU Upgrades are available in multiple stages, supporting various octanes both with or without any hardware modifications. Specific software is available for use with a high flow downpipe exhaust system and drop-in turbocharger upgrades are coming soon. Each stage is fully compatible with an upgraded intake, intercooler, catback exhaust, or other minor bolt on modifications.
Each stage includes optimizations to the factory boost gauge making it react more quickly and corrections to the power and torque gauges to match the increased output. Furthermore, we’ve added left foot braking, removed the speed limiter, raised the rev-limiter and added a motorsport limiter, adjusted the factory exhaust crackle to protect the catalyst, optimized cold start, retuned the exhaust flap actuation for the best performance and sound in multiple modes, optimized high altitude mappings, retuned the throttle for better response, and completely optimized the driving experience for street and track use making for a much more enjoyable driving experience!
APR Stage 1 ECU Upgrade
The APR Stage 1 ECU Upgrade is the first step towards making more power! This simple upgrade requires no engine hardware modifications, and produces 459-542 HP with 451-506 FT-LBS of torque, depending on octane. Gains as high as 66-132 HP and 88-146 FT-LBS of torque are available throughout the power band. To get more power, the vehicle can be outfitted with an upgraded intake, intercooler, catback exhaust and other small modifications without requiring any new modification to the ECU. Upgrading the small factory intercooler is highly recommended on this platform.
APR Stage 1 is available for 95 RON, 98 RON, 102 RON, 104 RON, and 108 RON fuel grades.
Please note, our E85 software is not a full flex fuel program. In this mode the engine is only designed to work on E85, as found directly at the pump, including both summer and winter blends from E60-E85. Using traditional pump fuels in this mode may result in engine damage. Do not manually blend with traditional pump fuel or race fuels. To ensure proper E85 content levels, APR recommends using an E85 content sensor. For maximum safety, especially on vehicles that see road course use, or long autobahn top speed runs, APR recommends NGK heat range 9 (NGK-R7437-9) spark plugs gapped to 0.024" ±0.002" or 0.6mm ±0.05mm with a change interval of 10-15,000 mi or 16-24,000 km.
APR Stage 1+ ECU Upgrade
The APR Stage 1+ ECU Upgrade is the next step towards making more power! This upgrade is designed for use with the APR Inlet System and APR RS3 Intercooler System or APR TT RS Intercooler System and produces 493-569 HP with 454-520 FT-LBS of torque, depending on octane. Gains as high as 86-162 HP and 96-152 FT-LBS of torque are available throughout the power band. To get more power, the vehicle can be outfitted with an upgraded intake, catback exhaust and other small modifications without requiring any new modification to the ECU.
APR "Lo Grip" Stage 1+ modes are equipped with a features that help to reduce wheel spin and aid in 60 FT and 0-60 times on street tires and unprepped surfaces. However, for vehicles equipped with much better tires and surface prep, an optional “High-Grip” mode is available to maximize launching performance!
APR Stage 3 ECU Upgrade
The APR Stage 3 ECU Upgrade is the next step towards making more power! This stage is available for multiple setups, and are all designed around using a drop-in turbocharger upgrade. Stage 3 has specific software for the TTE700 and GTX3582 drop-in turbo upgrades. Both require a APR TCU Upgrade, race DP exhaust system, midpipes, Bosch 980cc port injectors (0280158040), turbocharger inlet system, intercooler, and NGK heat range 9 (NGK-R7437-9) spark plugs gapped to 0.024" ±0.002" or 0.6mm ±0.05mm with a change interval of 10-15,000 mi or 16-24,000 km.
The TTE700 requires the included wastegate actuator. The GTX3582 requires the included turbosmart wastegate actuator and MAC 3-port solenoid. A proper 500 LPH+ @ 6 bar LPPF is required to run E85, but the stock LPFP is ok for all other fuels. The TTE700 produces 576-713 HP with 523-536 FT-LBS of torque. the GTX3582 produces 581-740 HP with 511-555 FT-LBS of torque. RHD vehicles without the turbo inlet will experience reduced output. In all cases, torque is kept flat to aid in component longevity.
This stage has optional high and low grip modes designed to reduce wheel spin and aid in 60 FT and 0-60 times depending on surface prep. Additionally this stage is available with optional exhaust crackle modes. The more aggressive modes increase the length, duration, intensity, and operating modes of the exhaust crackle. Aggressive modes are only recommended with testpipes. APR recommends NGK heat range 9 (NGK-R7437-9) spark plugs gapped to 0.024" ±0.002" or 0.6mm ±0.05mm with a change interval of 10-15,000 mi or 16-24,000 km.
Currently available for 99RON and E85 fuel grades/
| Stage | Fuel grade | Max HP | Max TQ | Max HP Gain Over Stock | Max TQ Gain Over Stock | |
|---|---|---|---|---|---|---|
| - APR recommends and tuned with Sunoco GT 260 for 100 AKI mode and Sunoco GT 260 Plus for 104 AKI mode. Never use lower octane than specified by the mode. | ||||||
| - Max increases are based on APR's actual measured stock values and not those reported by VAG. | ||||||

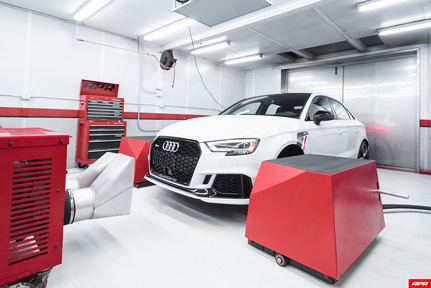

| - Reported wheel figures measured on APR's in house Dynamometer with a US Spec 2018 RS3, using SAEJ1349 correction and an average of multiple runs. Crank figures are estimated based on the measured wheel figures. Results may vary depending upon environmental conditions, vehicle, transmission, vehicle health, operating conditions, temperatures, fuel grade, dyno type, dyno setup, other variables and other modifications. On the dyno, this platform will see large swings in power based on intake air temperature, and the gear in which it's dynoed. | ||||||
| Stock As Reported by Audi | 95 RON | 394 HP | 354 FT-LBS | |||
| Stock As Measured by APR | 98 RON | 420 HP | 372 FT-LBS | |||
| APR Stage I | 95 RON | 459 HP | 451 FT-LBS | +66 HP | +88 FT-LBS | |
| APR Stage I | 98 RON | 476 HP | 470 FT-LBS | +86 HP | +108 FT-LBS | |
| APR Stage I | 102 RON | 491 HP | 475 FT-LBS | +98 HP | +112 FT-LBS | |
| APR Stage I | 104 RON | 516 HP | 498 FT-LBS | +106 HP | +137 FT-LBS | |
| APR Stage I | 108 RON | 524 HP | 506 FT-LBS | +113 HP | +146 FT-LBS | |
| APR Stage 1+ with Inlet and IC | 95 RON | 493 HP | 454 FT-LBS | +86 HP | +96 FT-LBS | |
| APR Stage 1+ with Inlet and IC | 98 RON | 513 HP | 480 FT-LBS | +104 HP | +116 FT-LBS | |
| APR Stage 1+ with Inlet and IC | 102 RON | 528 HP | 485 FT-LBS | +116 HP | +121 FT-LBS | |
| APR Stage 1+ with Inlet and IC | 104 RON | 533 HP | 510 FT-LBS | +125 HP | +144 FT-LBS | |
| APR Stage 1+ with Inlet and IC | 108 RON | 541 HP | 518 FT-LBS | +132 HP | +152 FT-LBS | |
APR ECU Upgrade Included Features
- World Class Calibration Expertise
- Acceleration Enhancements
- Speed Limiter
- Left Foot Braking
- Motorsport Rev Limiter
- Fuel Economy
APR World Class Calibration Expertise
Tuning 101:
The 2.5T engine uses a Bosch MED 17 ECU for engine management. Basically, it’s a computer that tells the engine how to operate. Tuning software, like the APR ECU Upgrade, tells the engine how to make more power. It does this by running more boost pressure, optimizing the cam shaft positions, adjusting the air/fuel ratio, advancing ignition timing, and more.
A Better Engine Management System:
The 2.5T’s ECU is incredible. Without the driver knowing otherwise, the ECU makes intelligent adjustments to the engine’s operations to keep it running smoothly. Unlike ECUs found in many other makes and models, when properly tuned, the ECU eliminates the need for custom tuning to maximize output, even when weather conditions change dramatically.
How APR Differs from the Competition:
The ECU is powerful, but extremely difficult to master. Without mastery, the ECU must be simplified, removing what makes it so desirable. The result is an incomplete product that often requires end user adjustment to maximize output in limited scenarios. On the contrary, APR’s Engineers spent the better part of a decade mastering the ECU to unlock its full potential. With complete access to the thousands of maps, tables and variables within, as well as a high-level understanding of how it works, APR’s Engineers were able to take advantage of everything the ECU has to offer. Power is maximized in nearly all scenarios, eliminating the need for end user adjustments. High performance operational modes are enabled and calibrated to deliver smooth daily driving, with a snappy and responsive throttle during moments of spirited driving. Mastery of the boost control system makes for an impressively predictable driving experience as the turbo spools quickly, delivering instant power, while torque-by-gear helps with traction control and protects the engine from being lugged out in tall gears. Lastly advanced high-output protection routines are enabled, allowing the ECU to make constant adjustments to airflow and fuel to cool and protect the engine, all without the driver knowing otherwise.
Extreme Testing

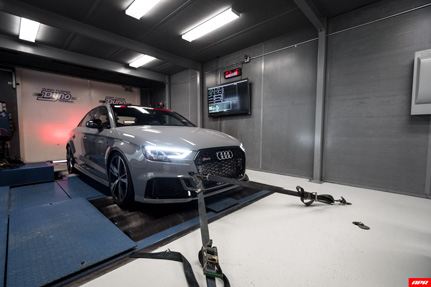

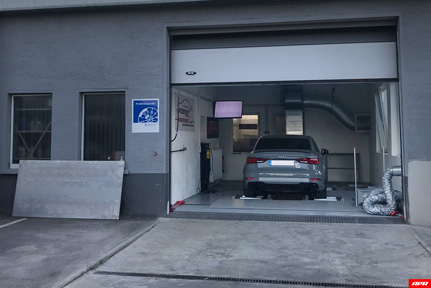

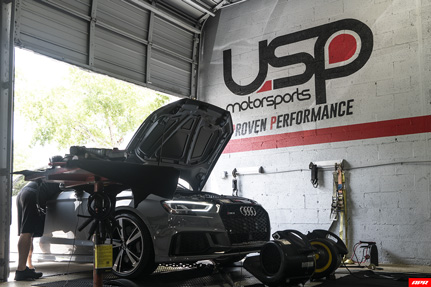

APR’s ECU Upgrade has been full tested for the better part of a year prior to a public release. This includes summer and winter weather testing on multiple continents, high and low altitude testing, extensive track testing at multiple road courses, extensive drag strip testing and extensive road and daily driving testing. APR’s test vehicles are full instrumented with multiple sensors, including pre and post intercooler temperature and pressure sensors, pre and post turbine temperature and backpressure sensors, pre and post catalyst temperature and pressure sensors, and multiple pressure sensors throughout the intake system. APR test vehicles have seen over 700 HP in various configurations, on the stock engine internals, and have set multiple world records, including 10.5 second stage 1 quarter mile passes, and 9 second stage 3 passes.
Acceleration Enhancements:
Beyond horsepower and torque enhancements, APR’s Calibration Engineers were able to increase the acceleration rate of the vehicle through other calibrations changes. Ignition delay is reduced resulting in a more responsive pedal without altering overall throttle sensitivity. Furthermore, throttle lag commonly noticed at slow speeds and while reapplying throttle has been reduced.
Speed Limiter:
APR’s ECU upgrade increases the vehicle's top speed limiter for blistering sprints around the track or across the Autobahn without the speed limiter shutting down the fun.
Left Foot Braking:
APR's Left Foot Braking feature allows more control over the vehicle’s throttle. The factory equipped vehicle's throttle input is disabled while pressing the accelerator and brake at the same time. Left Foot Braking, a common motorsport driving technique, allows the driver complete control over the vehicle’s throttle and braking system, which may give the vehicle the edge it needs at the track. This feature is available when traction control is in sport or disabled.
Motorsport Rev Limiter:
APR’s Motorsport Rev Limiter allows the engine to reach max RPM without the ECU slowing down acceleration nearly 150 RPM earlier. The result is more power to redline and a definable redline feeling as seen on other AudiSport vehicles.
Increased Fuel Economy:
APR’s Calibration Engineers paid close attention to several parameters directly related to fuel economy, especially while cruising at highway speeds. Depending on driving style and fuel quality, better miles per gallon may be achieved.
APR ECU Upgrade Optional Features
APR EMCS Programs and Features
APR’s Enhanced Modular Chipping System, (EMCS), brings selectable programs and features to the factory ECU, without the need to purchase external hardware switching devices. EMCS has the ability to completely rewrite the entire operating map data within the ECU, giving each program mode a completely different set of calibration changes. On this platform, this is contrary to the industry norm of capping limits, using multipliers, only swapping portions of a base calibration, or relying on knock activity to lower output. APR’s EMCS features and programs modes are activated via the factory OEM cruise control buttons, and optionally through APR Mobile. The vehicle’s cruise control will function normally while driving.
To learn how to activate the programs and features, choose the vehicle's cruise control type from APR EMCS Owner's Manual.
Program Switching:
Program switching allows the user to cycle through up to four different engine calibrations and operating modes all without the need for external hardware.
Stock Mode: By selecting stock mode, the ECU calibration is reset to the factory calibration.
Fault Code Erase:
Fault code erase allows the user to erase and reset engine related trouble codes and ECU adaptation data without using a specialty tool.
Security Lockout:
Security lockout prevents unauthorized individuals from using APR's EMCS functionality. When enabled, APR's EMCS features will appear completely invisible until a user specified 2 to 4-digit security code is entered.
APR Performance Modes:
APR's octane-specific calibrations are available for various premium and race fuels around the world. Each performance mode is a completely new calibration, altered specifically for the characteristics of the fuel quality selected.
Anti-Theft:
When activated, Anti-Theft prevents normal operation of the engine even if the factory key is used. The vehicle will be completely immobilized until a user specified 2 to 4-digit security code is entered.
APR Mobile
APR Mobile is a simple yet powerful tool designed to enhance the APR tuning experience.
APR Mobile installs on smart phones, tablets and other devices and provides a wireless connection to the vehicle’s engine control unit or ECU. Once connected, the device can be used to access APR’s EMCS program switching features, read and clear fault codes and data log the ECU at high data rates not found on other commercially available tools. The app can also be used to access APR’s latest news articles, locate dealers in APR’s network and review previously saved data logging sessions.
To learn more about APR Mobile, please visit our product page.
The APR Difference
APR Direct Port Programming
APR’s DirectPort Programming is now available! Any APR Dealer in the world, connected to the Internet, has direct access to APR’s latest ECU upgrades for loading directly over the vehicle's OBD-II port. This completely eliminates the need to remove and open the ECU for currently available files and can be uninstalled at any time!
APR ECU Explorer
APR’s proprietary ECU Explorer gives APR’s Calibration Engineers unparalleled access to the vehicle’s entire engine management system. Typical commercially available data logging tools, used by most tuners, only allow logging up to 12 engine-operating variables at extremely low data rates. These tools are also limited to a small, specific list of variables. APR’s ECU Explorer is capable of logging every variable found within the ECU with far more variables logged at once, at very high data rates.
APR ECU Composer
APR’s proprietary ECU Composer is used for altering the engine management system. With full access to every table, map and variable within the ECU, APR’s Calibration Engineers are not limited to a handful of maps as is common for most tuning companies.
APR ECU Assembly
APR’s Electrical Engineers have the ability to alter the code structure of the ECU. Through code levels changes, APR's Engineers are able to add features to the ECU. Other changes allow higher torque limits than those achievable through only modifying calibration data or using piggyback devices as is the case for many tuners. This allows APR's engineers to often not require transmission software to meet or exceed advertised gains. On the highly modified end, this often allows APR to make turbo upgrades operate without the need for external manual controllers.
| Vehicle | Engine | Transmission |
|---|---|---|
| Audi RS3 (Facelifted) (MKIII / Typ 8V) | 2.5 TFSI EA855 EVO - (DAZA) | S Tronic |
| Audi TT RS (MKIII / Typ 8S) | 2.5 TFSI EA855 EVO - (DAZA) | S Tronic |
| Stage | Price Exc. VAT | Price Inc. VAT | |
|---|---|---|---|
| IMPORTANT PRICING AND AVAILABILITY DETAILS: | |||
| - Optional Program Switching: A fully loaded ECU includes up to 4 program modes (stock mode, octane specific performance mode, valet, etc), as well as fault code erase, security lockout and anti-theft depending on availability and ECU compatibility. | |||
| - Availability and ECU Compatibility: Stages, programs, and features may not be available for all ECUs. | |||
| - ECU Revision Notice: Multiple ECU revisions exist for each platform. APR software may be temporarily unavailable when factory updates are applied. An APR dealer can check availability in person, or over the phone if the ECU boxcode/revision is known. | |||
| APR Stage 1 ECU Upgrade | £676.67 | £812.00 | |
| APR TTE700 ECU Upgrade (New Customer) | £1015.00 | £1218.00 | |
| APR TTE700 ECU Upgrade from Stage 1 | £338.33 | £406.00 | |
| - Add Optional APR EMCS Program Switching (Fully Loaded) | - | Contact a dealer | |
How to Purchase
Please use the APR Dealer Locater Tool to locate an APR Dealer, confirm availability and schedule an appointment.
Please note vehicle manufacturers issue many ECU part numbers and revisions throughout their vehicle lineup. As such, some ECUs may be temporarily unavailable as new parts and/or revisions are released. If the vehicle’s ECU part number and revision is known, availability can be checked at any APR Dealer.
30 Day Money Back Guarantee
All APR ECU Upgrades include a 30-day money back guarantee with no questions asked. If for any reason the owners is dissatisfied with the APR ECU Upgrade, they may return to the place of purchase for a full refund, provided they are within the 30 day period from the time of the initial purchase. Labor or shipping charges are not included in the guarantee and are at the discretion of the place of install.
Limited Lifetime Warranty
All APR ECU Upgrades include a limited lifetime warranty against defects in the software, and to provide free updates and reflashes as they become available. Labor or shipping charges are not included in the warranty and are at the discretion of the place of install.
