1.8T Transverse Stage III Components

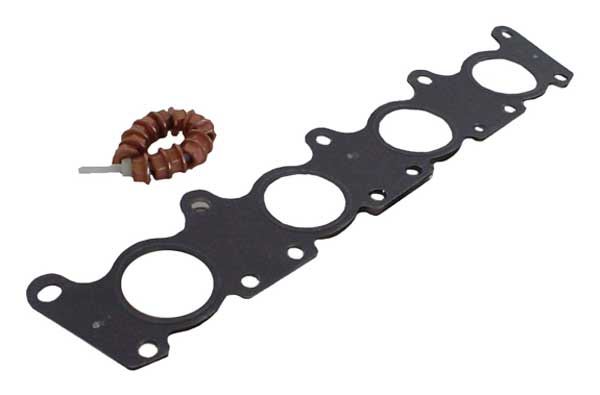

Bag 1
- (13) Copper Shouldered Locknuts
- (1) Head to Manifold Gasket

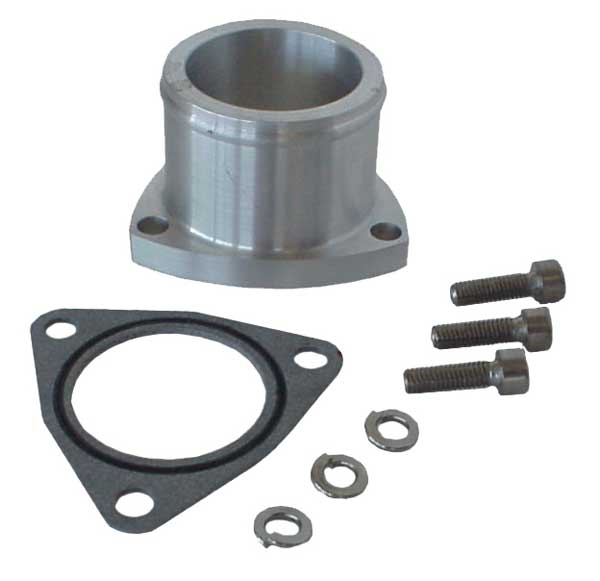

Bag 2
- (1) Aluminum Compressor Outlet Flange
- (3) Stainless Steel Split Lock Washer
- (3) Stainless Steel Allen Head Bolts
- (1) Compressor Outlet Gasket

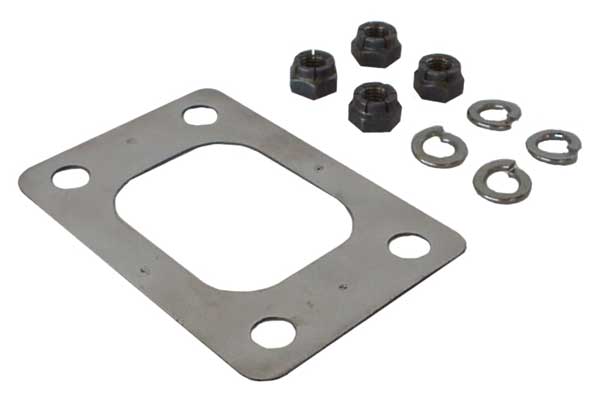

Bag 3
- (1) Manifold to Turbo Gasket
- (4) Flexloc Stainless Steel Locknuts
- (4) Stainless Steel Flat Washer

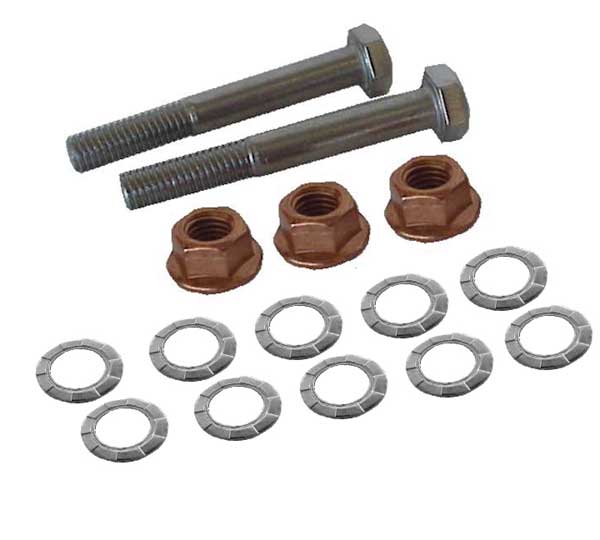

Bag 4
- (3) Copper Shouldered Locknuts
- (3) Stainless Steel Studs
- (2) Stainless Steel Shouldered Bolts
- (10) Stainless Steel Lock Washers

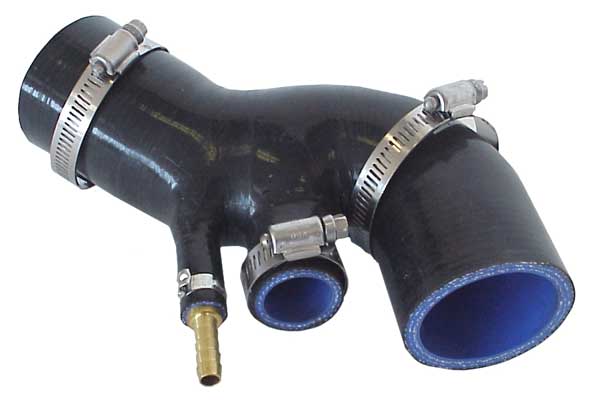

Bag 5
- (2) Stainless Steel 2-3/4" Hose Clamps
- (1) Stainless Steel 1-3/8" Hose Clamps
- (1) Silicone Compressor Exit hose
- (1) Brass Barb
- (1) Stainless Crimp Clamp

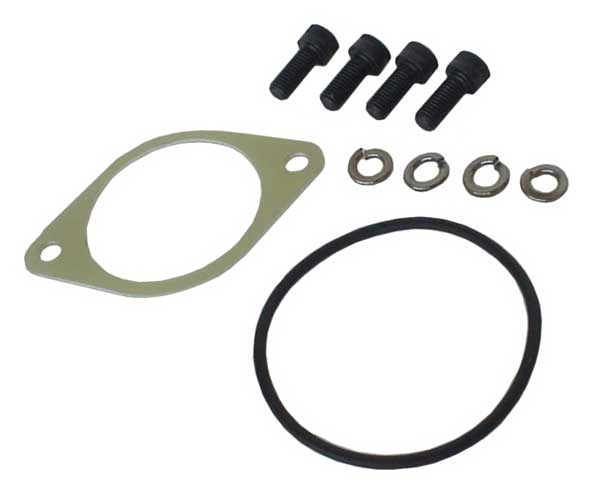

Bag 6
- (1) Phenolic Compressor Outlet Gasket
- (1) Inlet Pipe O-Ring
- (4) Stainless Steel Lock Washer
- (4) Allen Head Bolts

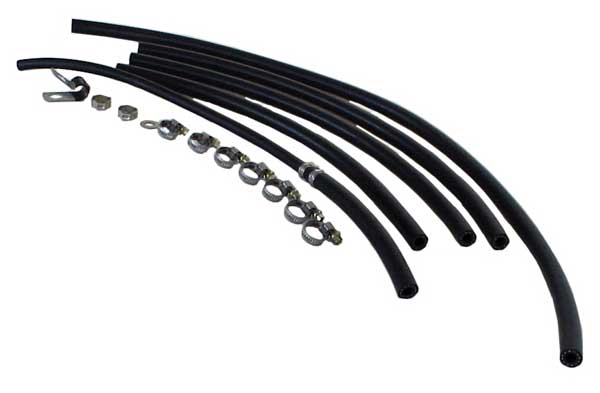

Bag 7
- (1) 7mm ID Vacuum Line - 30" Section
- (1) 7mm ID Vacuum Line - 19" Section
- (1) 7mm ID Vacuum Line - 17" Section
- (1) 7mm ID Vacuum Line - 15.25" Section
- (1) 7mm ID Vacuum Line - 6.25" Section
- (1) 5mm ID Vacuum Line - 13" Section
- (1) 7mm to 5mm Barbed Reducing Union
- (7) Stainless Hose Clamps for 7mm Vacuum line
- (2) Stainless 13.3mm Crimp Clamp
- (1) Stainless 14.5mm Crimp Clamp
- (1) Hose retaining clip for vacuum line and extension cable

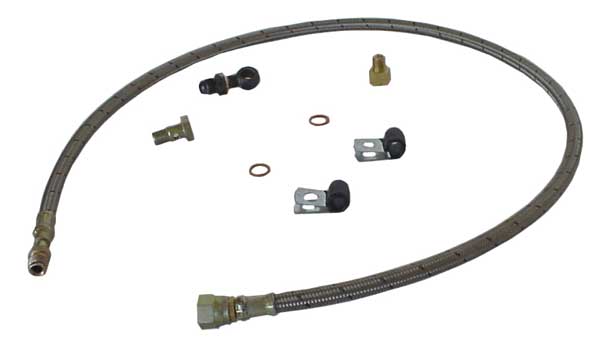

Bag 8
- (1) Braided Stainless Steel Oil Feed Line
- (1) Inverted Flare Female X Inverted Flare Male Fitting
- (1) 12mm Banjo Fitting
- (1) 12mm Banjo Bolt
- (2) 12mm Crush Washers
- (2) Hose Clip for Oil Feed Line

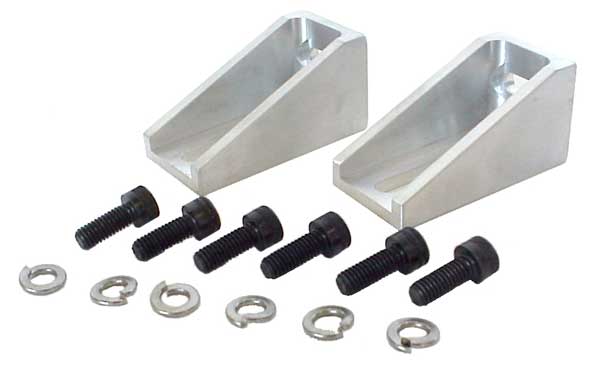

Bag 9
- (6) Stainless Steel Lock Washer
- (6) Allen Head Bolts
- (2) CNC'ed Aluminum Inlet Pipe Brackets

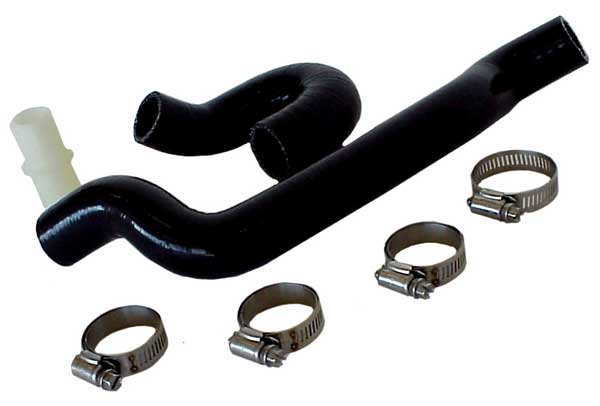

Bag 10
- (1) Silicone Upper DV Hose
- (1) Silicone Lower DV Hose
- (1) 1" Barbed Union
- (3) Stainless 1-3/8" Hose Clamps
- (1) Stainless 1-3/4" Hose Clamps

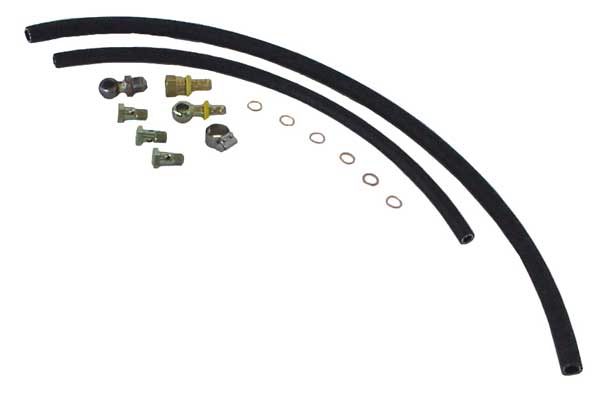

Bag 11
- (1) 33" Braided Coolant Hose
- (1) 22-3/8" Braided Coolant Hose
- (1) 14mm Banjo to JIC Fitting
- (1) JIC to 1/2" Push-Lok Fitting
- (2) 14mm Banjo Fitting
- (3) 14mm Banjo Bolts
- (6) 14mm Crush Washers
- (1) Stainless 25/32" Hose Clamp

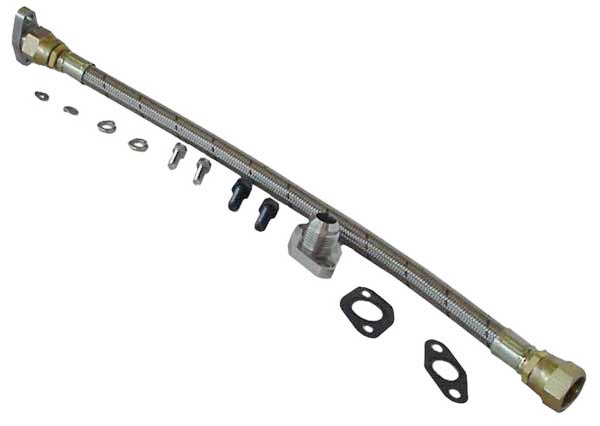

Bag 12
- (1) Braided Stainless Steel Oil Drain Line
- (1) Upper CNC'ed Stainless Steel Oil Drain Flange
- (1) Lower CNC'ed Stainless Steel Oil Drain Flange
- (1) Upper Oil Drain Gasket
- (1) Lower Oil Drain Gasket
- (2) Allen Head Upper Flange Bolts
- (2) Stainless Steel Lock Washers
- (2) Stainless Steel Allen Head Bolts
- (2) Stainless Steel Lock Washers

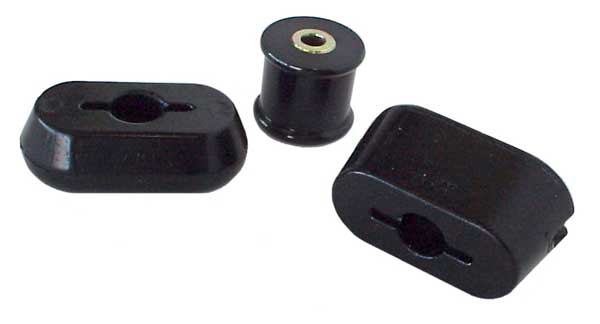

Bag 13
- (1) Three Piece Engine Mount Kit

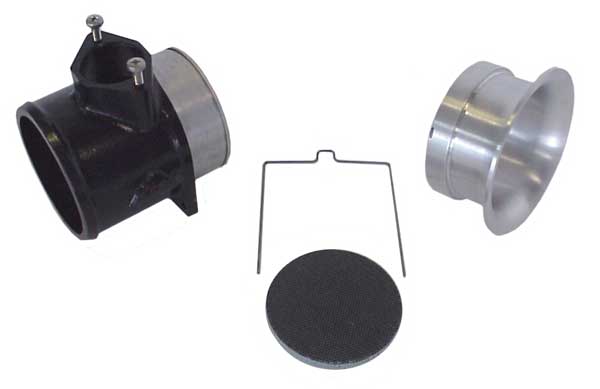

Bag 14
- (1) Airflow Straightener
- (1) MAF Housing
- (1) Aluminum Air Horn
- (2) Stainless Steel Screws
- (1) Wire Retaining Clip

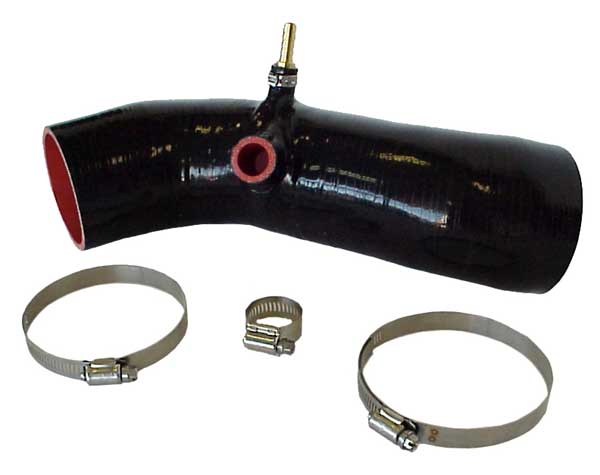

Bag 15
- (1) Silicone MAF Intake Hose
- (1) Stainless Steel 4" Hose Clamp
- (1) Stainless Steel 3-3/4" Hose Clamp
- (1) Stainless Steel 1-1/4" Hose Clamp
- (1) Brass Barb
- (1) Stainless Steel 19.8mm Crimp Clamp

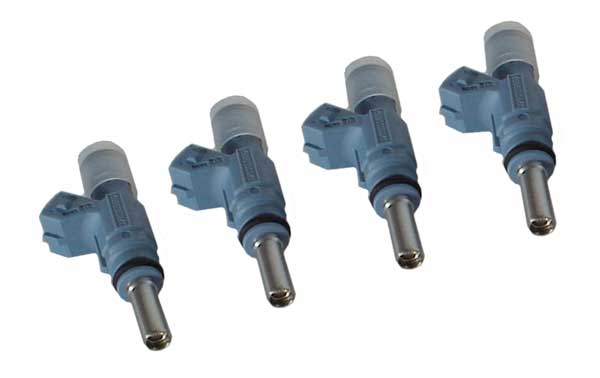

Bag 16
- (4) Fuel Injectors

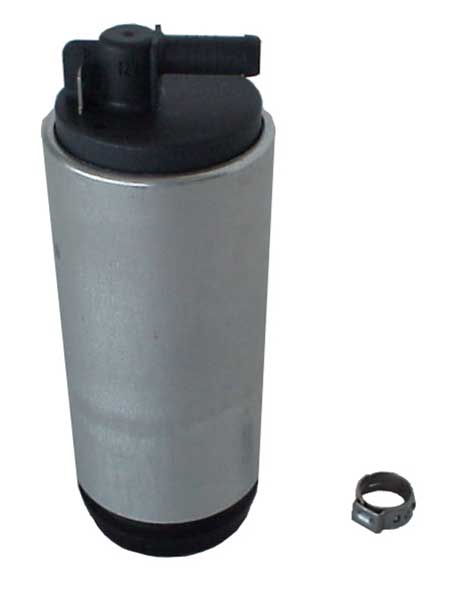

Bag 17
- (1) High Flow Fuel Pump
- (1) Stainless Steel 11.9mm Crimp Clamp
Manifold Assembly
- (1) Inconel Manifold
- (4) Stainless Steel High Strength Studs
Turbocharger Assembly
- (1) Honeywell/Garrett Ball-Bearing Turbocharger

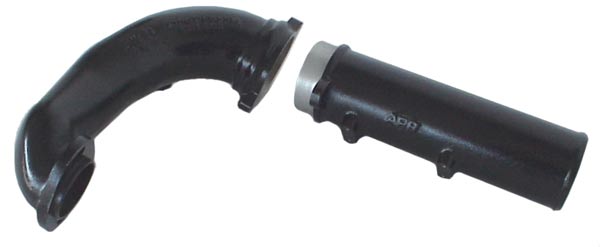

Intake Piping
- (1) Straight Aluminum Intake
- (1) Curved Aluminum Intake

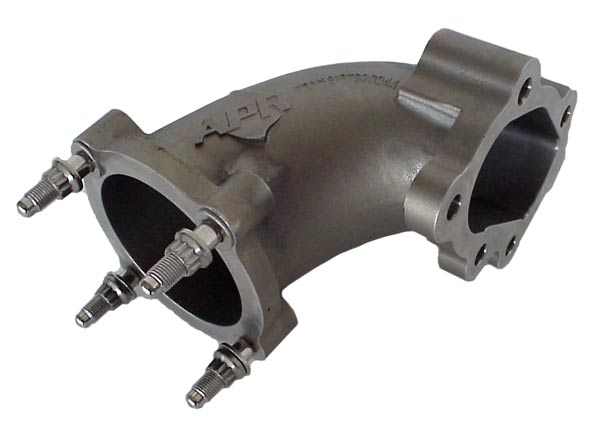

Exhaust Downturn
- (1) Stainless Steel Cast Exhaust Downturn
- (1) Stainless Steel High Strength Studs

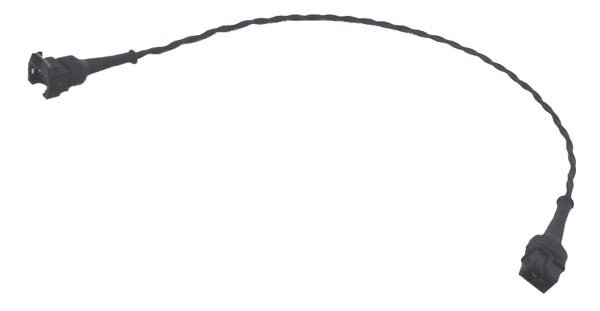

Extension Cable
- (1) Boost Frequency Valve Extension Cable

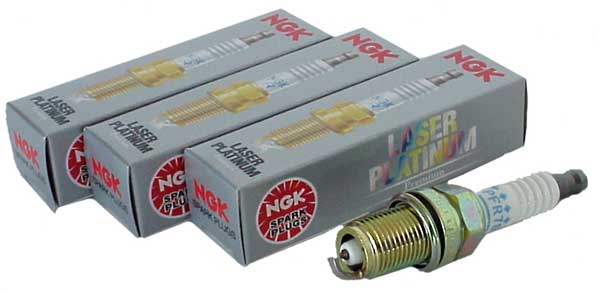

Spark Plugs
- (4) NGK Spark Plugs

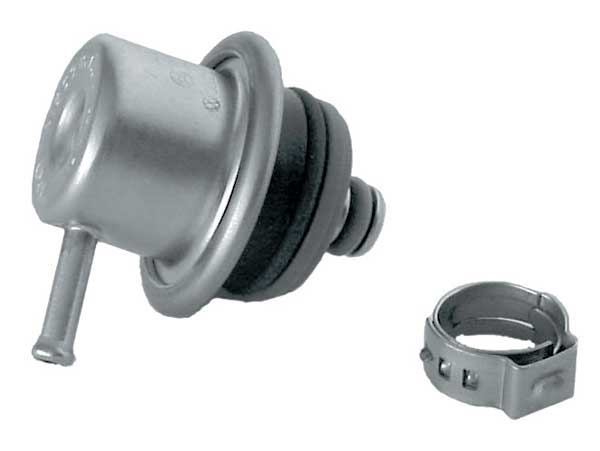

Fuel Pressure Regulator
- (1) 4bar Fuel Pressure Regulator
- (1) Stainless Steel Crimp Clamp

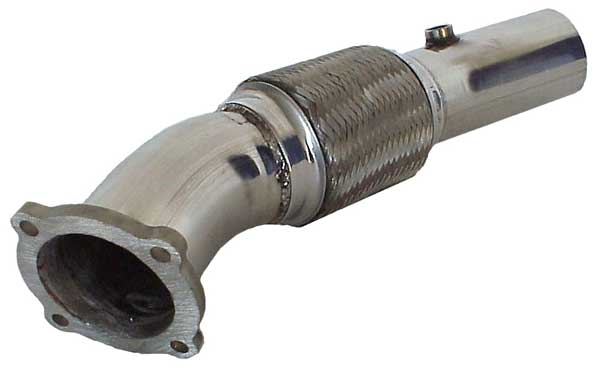

Downpipe
- (1) Stainless Steel 3" Downpipe
